Bored Piling

TR Solids Control provides Bored Pile Mud Equipment and integrated solutions for sludge-water separation and treatment for urban construction.

Product PDF Product Catalogue Inquiry

Decription

Bored piling is a modular system designed to recycle solid particles (coarse and fine sand) during the production of construction piling mud, as well as to purify tail water and dry-stack solid waste (mud). It has great innovations in appearance and structure.

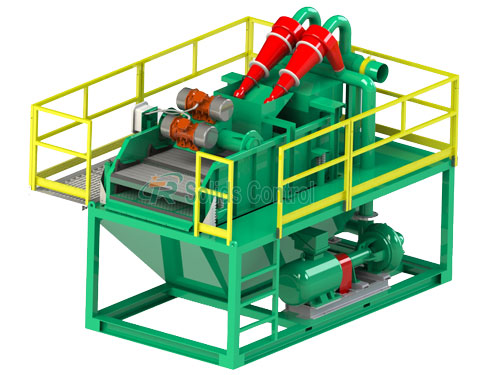

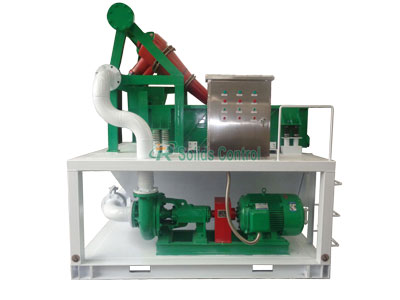

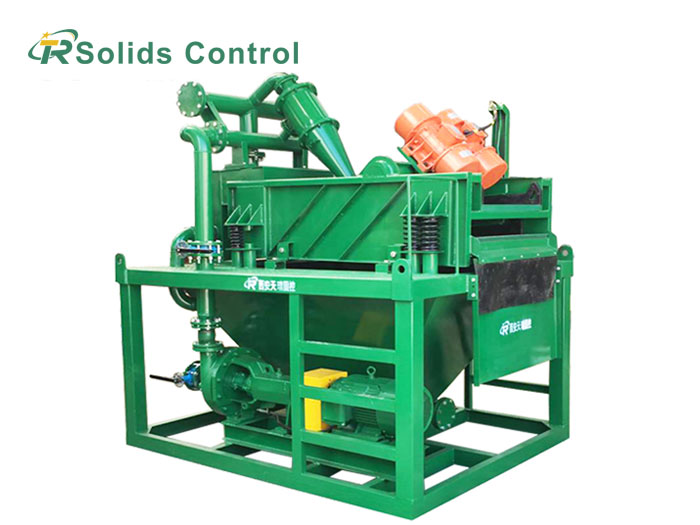

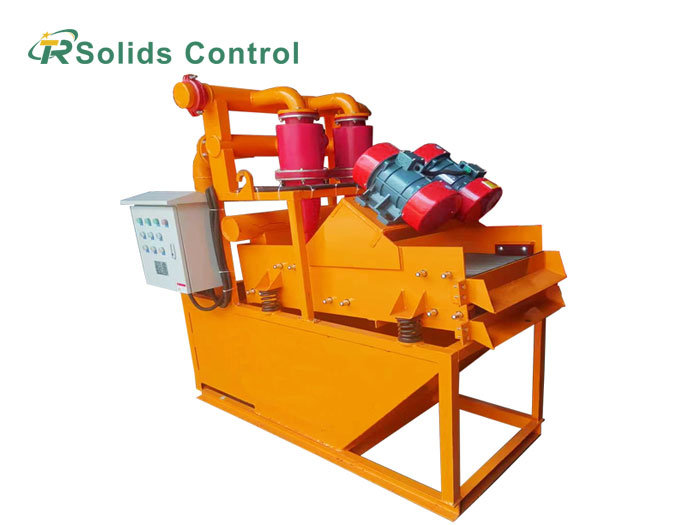

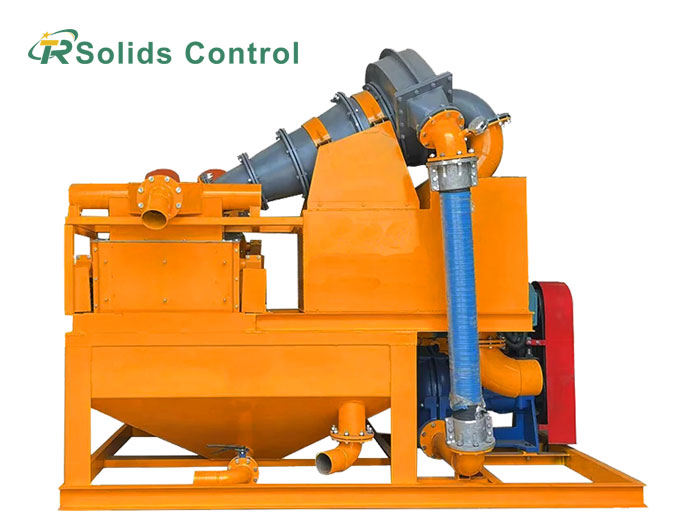

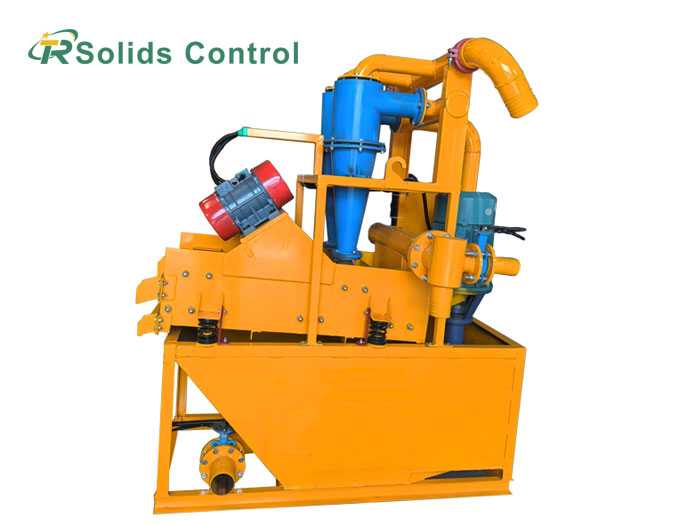

It primarily consists of shale shaker, desander or desilter cyclone, sand pump, and mud tank. The shale shaker is equipped with coarse and fine screens. The coarse screen removes larger particles of slag from the mud, while the desander or desilter cyclone and the fine screen on the vibrating screen remove smaller sand particles. The closed-circuit mud purification system and the low slag moisture content help reduce environmental pollution. The TR Drilling solids control equipment mud-water separation system is specifically designed for mud purification in construction projects such as slurry balancing, piling, and shield tunneling.

Parameters of Bored Piling Mud Recycling System

Model	TRZX-50/25	TRZX-100/50	TRZX-200/50
Fluid Capacity	≤50m³/h	≤100m³/h	≤200m³/h
Sludge Treatment Capacity	10-26t/h	20-50t/h	25-80t/h
Separation Point	25μm	50μm	50μm
Shale Shaker	TRZS753	TRZS753	TRZS705
Screen Area	upper layer：700x1250 Lower layer：750x900x2	upper layer：700x1250 Lower layer：750x900x2	upper layer：750x900x2 Lower layer：700x1250x3
Vibration Motor	1.0kwx2	1.0kwx2	1.5kwx2
Matching Pump	TRSB4x3-12(15kw)	TRSB5x4-13(30kw)	TRSB6x5-13J(45kw)
Cyclones	DN100x4	DN250x1	DN250x2
Tanks Dimension	2300x1830x1300mm	3100x2030x1300mm	4000x2200x1300mm
System Dimension	2300x1830x2400mm	3100x2030x1300mm	4000x2300x2850mm

Application areas: Suitable for large-diameter pile foundation projects using mud wall consolidation and circulation drilling technology, as well as various foundation engineering construction such as jacking operations, anti-seepage wall projects, and trenchless projects.

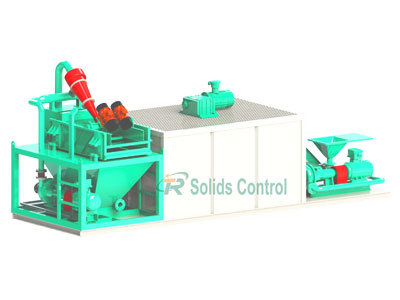

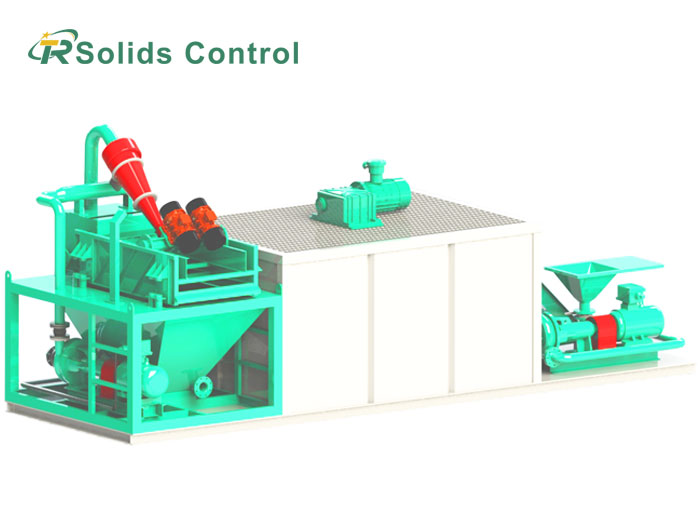

Piling Sand Remover piling system Building piling and sand removal system

Xi'an TR Solids Control Equipment's trenchless mud recovery system and mud-water separation equipment have wide range of applications: directional crossing projects, mud-water separation in trenchless projects, mud purification and recovery in slurry shield construction, mud purification and recovery in forward and reverse circulation drilling in hydropower, urban construction and other construction projects, and mud purification and recovery in large-diameter shafts and pile foundations.
