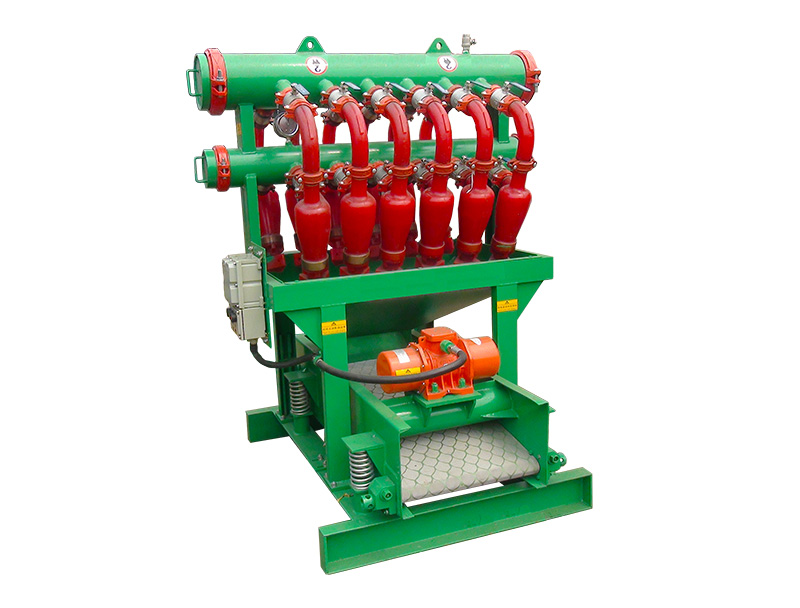

Drilling Mud Desilter

Drilling Mud Desilter is an economic compact desilting equipment. Desilter is used for drilling fluids solids control system.

Drilling Mud Desilter is a very important piece of equipment in the mud cleaning process. The principle of working in hydro cyclones is the same as desanders. Desilter uses smaller hydro cyclones compared to Drilling Desander for the treatment, which enables it to remove even smaller particles from the drill fluid. The smaller cones allow the desilter to remove solids hello over the 15 microns size. Each cone achieves consistently 100 GPM.

Drilling Mud Desilter is typically used after the drill fluid has been processed through the mud desander. It uses smaller hydro cyclones compared to Drilling Desander for the treatment, which enables it to remove even smaller particles from the drill fluid. The smaller cones allow the desilter to remove solids hello over the 15 microns size. Each cone achieves consistently 100 GPM. Drilling Desilter is the process of fine particle size separation. It is a very important piece of equipment in the mud cleaning process. The desilter reduces the average particle size while also removing abrasive grit from the unweighted drill fluid. The principle of working in hydro cyclones is the same as desanders. The only difference is that the drilling mud desilter makes a final cut, and the capacity of the individual cone is significantly lower. Multiple such cones are utilized for the process and manifolded into a single unit. Desilter is sized 100% – 125 % of the flow rate into the desilter. A Siphon breaker is also installed with the overflow manifold from the cones.

Advantage of Desilter

• The number of cyclone is flexible, according to customer’s needs.

• Pure polyurethane cyclone is more durable, and can be exchanged with the international brand.

• Desilter is designed exquisitely and easy to install.

• Less vulnerable parts, and easy to maintain.

• Competitive price, and cost-effective.

Mud Desilter Technical parameters

Mud Desilter for Drilling Fluids Solids Control

Drilling Mud Desilter is an economic compact desilting equipment. separable from 15 to 44 micron .In the drilling solid control system is used for before desander after centrifuge.

TR solids control manufacture the Drilling desilter which could replace the derrick and swaco.

We are an exporter of drilling mud desilter. TR Solids control is the designed, selling, production, service and delivery of Chinese Desilter manufacturer. We will provide the high quality mud desilter and best service.Your best drilling fluids desilter start from TR solids control.
