Mud Purification Device

Drilling mud purification unit for piling mud treatment, also called piling desander.It integrates mud shale shaker and cyclone separation to form mud circulation system.

Product PDF Product Catalogue Inquiry

Description

The mud purification device is special equipment independently developed by TR Solids Control for efficient piling mud treatment. Also referred to as piling desanding machine or desanding plant, this unit integrates shale shaker and desanding module into a single compact slurry separation system.

The shale shaker is fitted with coarse‑mesh screens to remove large solids, while the desanding module combines hydrocyclone desander with primary shaker. In operation, drilling mud flows over the shale shaker into collection tank, then is split via two connecting pipes into separate desanding modules. Each desanding module its own desander cyclone, which effectively strips sand and fine particles down to the 15–44 micron range. After two staged treatment, the recycling effect can be achieved.

This mud recycling system is widely applied in foundation engineering, including bored piles, anti-seepage wall, slurry balance shield, and pipe jacking projects with mud wall protection and circulating drilling. It helps regulate mud parameters, improve hole-forming quality and efficiency, shorten hole cleaning time, cut construction costs, prevent drill sticking accidents and reduce environmental pollution. It is essential equipment for standardized foundation construction.

Advantages Of Piling Desanding Plant

Modular design: The integrated mud shale shaker and desanding cyclone, compact structure and small footprint.
High capacity: Removing solids from 15~44 μm, processing capacities, from 100 to 3000 m³/h. Recovers drilling fluid and lowers operation costs.
Heavy‑duty wear: Advanced abrasion‑resistant materials, the screens and cyclones enjoy long service life.
Eco‑friendly mud recycling: Mud recycled via its mud recovery system can be reused, greatly reducing environmental pollution.
Simple, Practical Process: The treatment process flow is simple and practical, making installation, operation, and maintenance convenient.

Mud Purification Device Parameters

Model	TRZX-50/20	TRZX-100/30	TRZX-150/50
Liquid handling capacity（m³/h）	≤50	≤100	≤150
Slag processing capacity（T/h）	≤20	≤30	≤50
separation point（μm）	20	30	45
Maximum moisture content of undersize	30%	30%	30%
Sand content of slurry after purification	＜2%	＜2%	＜2%
Total power（kw）	20.7	20.7	20.7
Dimensions（m）	2.2×1.65×2.35	2.5×1.7×2.35	2.5×1.7×2.35
Weight（kg）	2100	2300	2500

Model	TRZX-200/80	TRZX-250/90	TRZX-500/200
Liquid handling capacity（m³/h）	≤200	≤250	≤500
Slag processing capacity（T/h）	≤80	≤90	≤50
separation point（μm）	60	60	60
Maximum moisture content of undersize	30%	30%	30%
Sand content of slurry after purification	＜2%	＜2%	＜2%
Total power（kw）	48.6	58.6	117.2
Dimensions（m）	3.5×1.9×2.45	3.5×2×2.45	3.5×2×2.45
Weight（kg）	3300	3600	7800

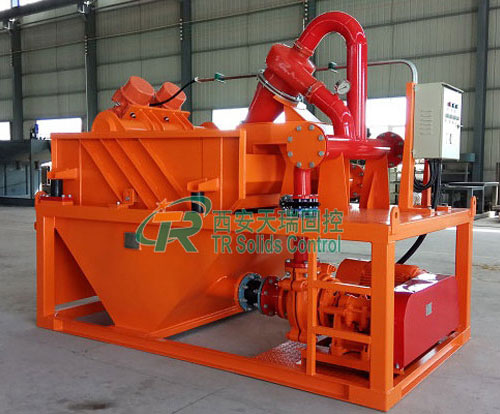

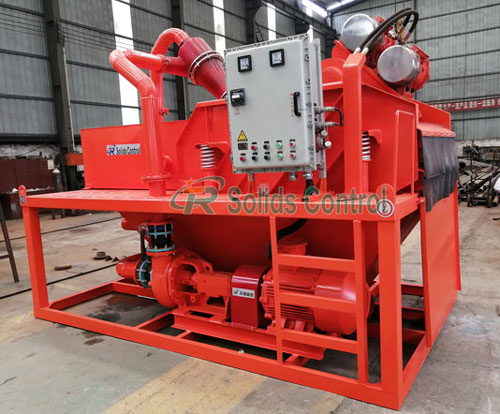

Desanding Plant for Mud Purification System Piling Desanding Device Sale

Typical Applications

TR mud desanding plants are the effective solution for mud recycling and solids control in:

Bored pile desanding operations
Micro‑tunnelling and pipe jacking
Tunnel boring machine (TBM) slurry treatment
Horizontal directional drilling (HDD)
Water‑well and geothermal drilling

Our mud purification systems hold API and ISO9001 certifications. Full after-sales service is available for our mud desanders and mud purification systems. TR Solids Control is reliable supplier of high-quality mud purification equipment.

Apart from Piling Desanding Device, we also supply diversified mud systems, including drilling solids control, HDD mud recycling and shield mud recycling systems.
