Desander Desilter Shale Shaker Integrated Machine: Efficiently Boosting Oilfield Drilling Systems

In oilfield drilling operations, the purification of drilling fluid directly impacts drilling efficiency, equipment lifespan, and operational costs. Developed and manufactured by TR Solids Control, the TRQJ Series Drilling Fluid Cleaner(desander desilter shale shaker integrated machine) integrates desanding, desilting, and shale shaker functions into single unit. With high-efficiency purification capability and compact structure, this solids control equipment becomes the backbone of oilfield drilling system solids control, providing solid support for smooth progress of drilling operations.

As 3rd and 4th-stage solids control device specially designed for oil drilling, this desander desilter shale shaker integrated machine combines hydrocyclone desander, hydrocyclone desilter, and underflow shale shaker into one. It integrates two-stage purification onto single shale shaker, enabling effective treatment of all drilling fluids, especially suitable for weighted drilling fluid processing. The core value of this oilfield drilling fluid cleaner lies in efficiently recovering costly barite and drilling fluid, while precisely removing harmful solids from wellhead returns. This not only significantly reduces material loss costs but also avoids wear and blockage of drilling equipment caused by harmful solids, thus ensuring the stable operation of entire drilling system.

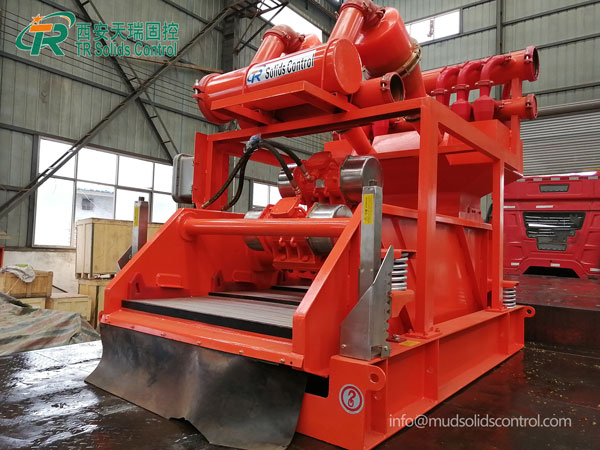

In terms of structure, this desander desilter shale shaker integrated machine is combined device of a set of hydrocyclones and ultra-fine shale shaker. The overflow of hydrocyclones is directly returned to the drilling fluid system for recycling, while the underflow falls onto the shale shaker screen; the drilling fluid after screening returns to the circulation tank, and the cuttings and other impurities separated on the screen are directly discharged. The mesh size of the screen equipped with the machine can be adjusted between 80~325 meshes, adapting to the separation requirements of solid particles of different sizes and further improving purification accuracy.

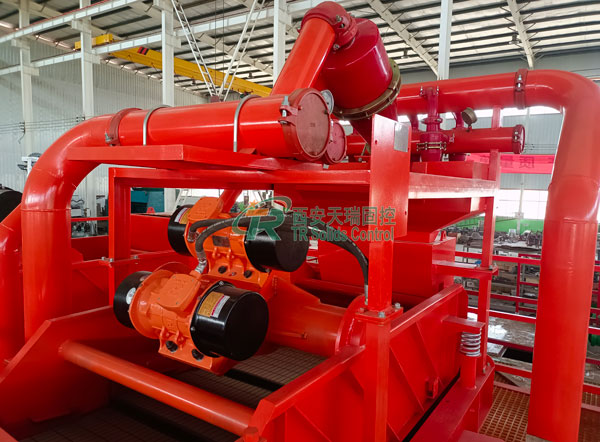

The high-efficiency performance of desander desilter shale shaker integrated machine originates from the synergy of three core components, each with clear and complementary functions that form a complete purification system:

1. Hydrocyclone Desander : Separates large-sized solid impurities from drilling mud. Based on the hydrocyclone principle, it quickly separates large-diameter cuttings, preventing them from entering the subsequent treatment link, thereby reducing the wear and blockage of subsequent equipment and extending the service life of the entire solids control system.

2. Hydrocyclone Desilter：As the secondary purification component of oilfield drilling fluid cleaner, it further separating small and medium-sized solid particles. On the basis of the treatment by desander, it further improves the cleanliness of drilling fluid, laying a solid foundation for subsequent barite recovery and drilling fluid recycling.

3. Underflow Shale Shaker：Undertakes the final screening task of underflow materials, processing the underflow materials separated by hydrocyclone desander and desilter cyclone. Through high-frequency vibration, it achieves multi-stage screening, further removing fine solid particles to ensure the screened drilling fluid meets recycling standards, while efficiently discharging over-screen impurities.

The desander desilter shale shaker integrated machine has significant advantages such as compact structure, small space occupation and powerful functions. It does not need to install multiple separate devices, which greatly saves the space resources of drilling site. At the same time, it simplifies the equipment installation and operation and maintenance processes, making it an ideal choice for drilling mud solids control.

TR Solids Control is a professional manufacturer and supplier of desander desilter shale shaker integrated machines. With years of R&D and production experience in solids control equipment, the company’s TRQJ Series Drilling Fluid Cleaners offer complete range of specifications and broad applicability, meeting mud treatment needs across oil drilling, trenchless construction, shield tunneling, and other fields. Adhering to the R&D philosophy of “High-Efficiency Purification, Energy Conservation & Consumption Reduction”, TR continuously upgrades equipment structure, material selection, and performance optimization to ensure stable and reliable operation of every unit. Whether for conventional oil drilling or special operations under complex geological conditions, TR’s integrated machine provides precise adaptation and customized mud purification solutions.

If you need high-efficiency and stable drilling mud purification equipment, TR Solids Control's TRQJ Series Desander Desilter Shale Shaker Integrated Machine will be your high-quality choice. Welcome to inquire and cooperate at any time!
