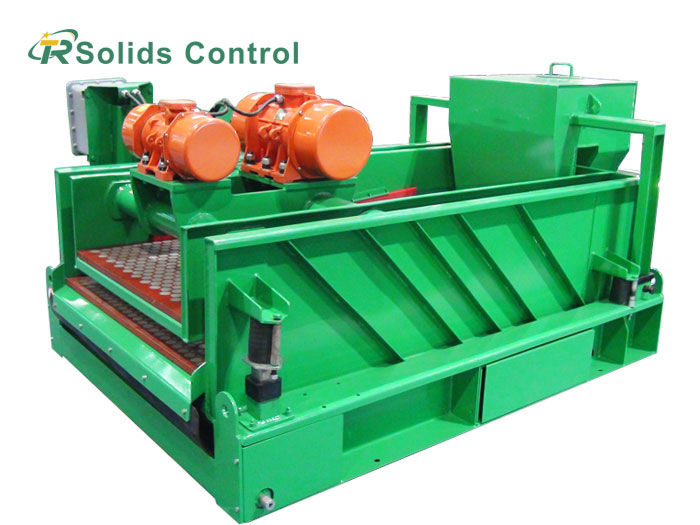

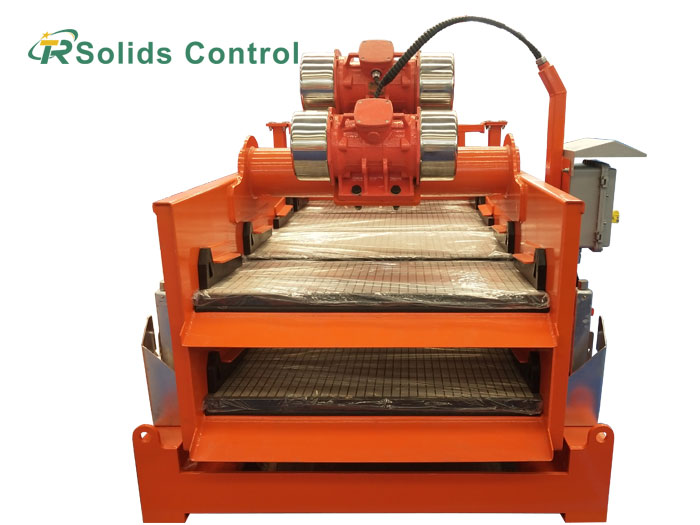

Double-Deck Shale Shaker

A double-deck shale shaker is a type of screening equipment with two levels of screens. It typically consists of a screen box and two sets of vibrators. Each level has its own screen, used to separate materials of different particle sizes.

Decription

The double-deck shale shaker utilizes two layers of screens to separate various powders and granular materials. The slurry first passes through the top coarse screen to remove larger particles. The slurry then flows to the lower, finer screen for deeper separation. This design improves separation accuracy and helps recover more usable fluid. It also increases processing capacity, reduces the burden on downstream equipment, and extends the service life of the entire solids control system.

Double-deck shale shakers are best suited for wells with mixed particle sizes and medium to high flow rates. Double-deck shale shakers are ideal for drilling sites with special requirements and limited space, requiring only two shakers but still requiring high throughput.

Features of double-deck shale shaker

Vertical parallel system design
Double-layer screen surface and modular screen design make it easy to transport and install.
The vibration motor connecting bolts use special thread anti-loosening technology, which is continuous and reliable in vibration environment.
Hydraulic tilt adjustment, easy and reliable operation.
The air bag type compacting screen makes it easy to replace the screen.
The large flow area and double-layer screen surface significantly improve the processing capacity of a single machine.
Well-known brand motors are suitable for use in harsh outdoor explosion-proof environments.

Benefits of double-deck shale shaker

Reducing the purchase or use of desilters and desanders directly reduces on-site drilling costs.
Modular screens have a long service life and are used for much longer periods of time than ordinary screens, saving a lot of manpower and material resources.
Improve the level of modern drilling and the working environment of on-site operators.

To meet the requirements of drilling fluid shakers, maximize screening area, and reduce their footprint, Tianrui Solids Control has designed a double-deck shale shaker. The first layer of screen removes coarse particles, while the second layer provides further screening. Its compact structure saves space.
