14626-00 Tensioning Assy

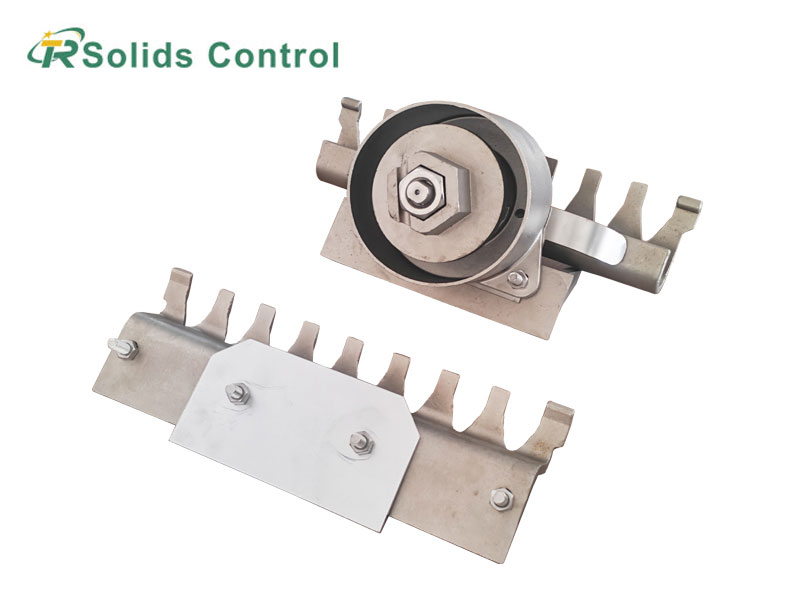

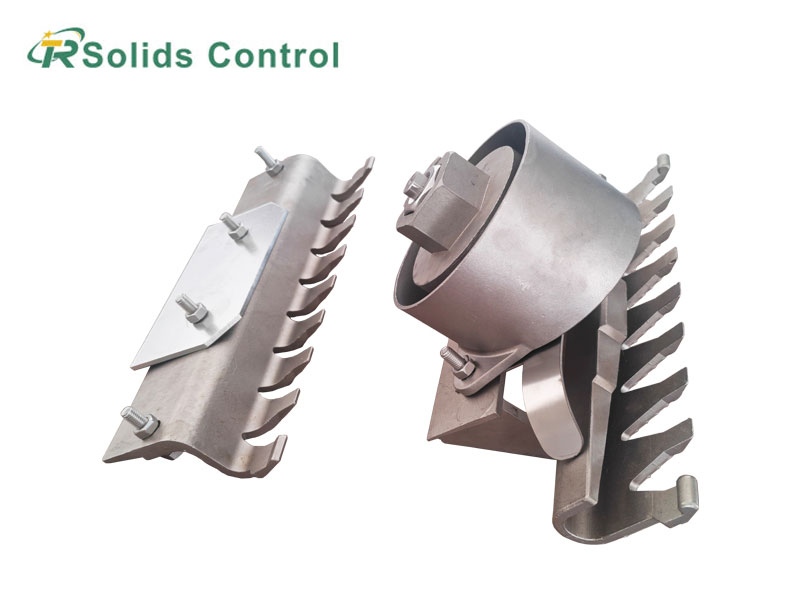

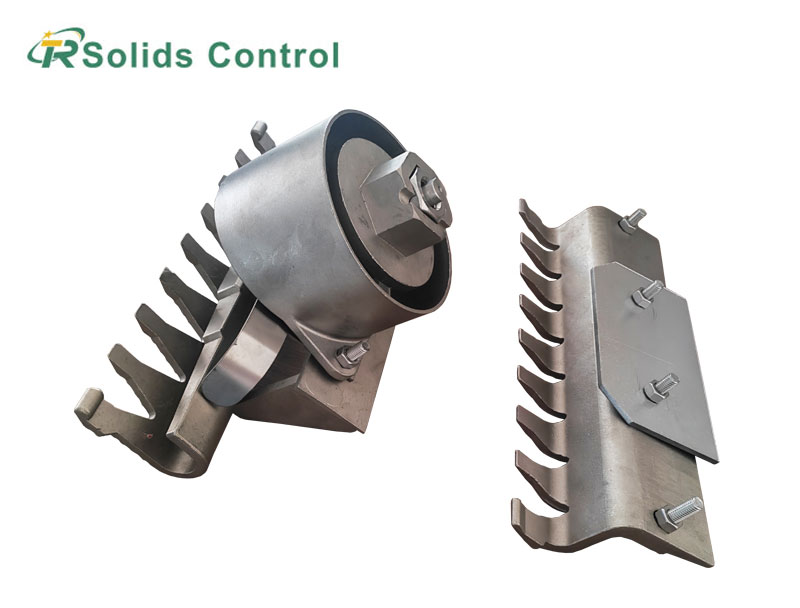

The 14626-00 Tensioning Assy is a critical component of Derriok's FLC500 series shale shakers, designed to secure screen panels quickly and efficiently using Derriok's patented Quick-Lok single-side tensioning system. This assembly enables operators to replace screen panels in under one minute per panel, significantly reducing downtime and maintenance efforts in oilfield solids control operations .

Primary Functions:

1. Fast Screen Panel Securement: Allows screen panels to be tensioned with just 1/2-turn of the bolts, eliminating the need for traditional wedge systems

2. Single-Side Operation: Enables screen replacement and tensioning from one side of the shaker, improving ergonomics and reducing required workspace

3. Optimal Tension Distribution: Maintains uniform tension across the screen panel, extending screen life and enhancing separation efficiency

4. Vibration Resistance: Secures screens firmly in place during high-G operation, preventing panel movement that could cause damage

Advantages

1. Reduced Downtime: Screen changes completed in under one minute per panel vs. traditional methods that take 5-10 minutes

2. Improved Safety: Single-side access reduces risk of injury during screen replacement

3. Extended Screen Life: Uniform tensioning prevents premature wear and damage from vibration

4. Enhanced Efficiency: Quick screen changes allow for faster response to changing drilling conditions

5. Cost Savings: Minimizes labor costs associated with maintenance and extends screen panel service life

The 14626-00 Tensioning Assy is cornerstone component of Derriok's FLC500 series shale shakers. This assembly allows operators to quickly change screens, significantly improving production efficiency while reducing downtime and maintenance costs.

Shaker Screen Tensioner Parts Number Comparison Table

Num	Part Names	Part No.	Applicable Equipment Model	Part Photos

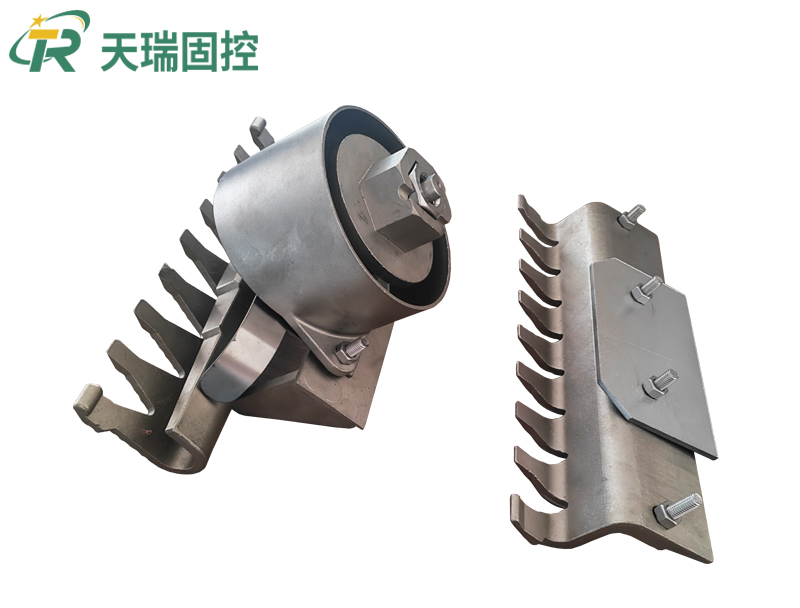

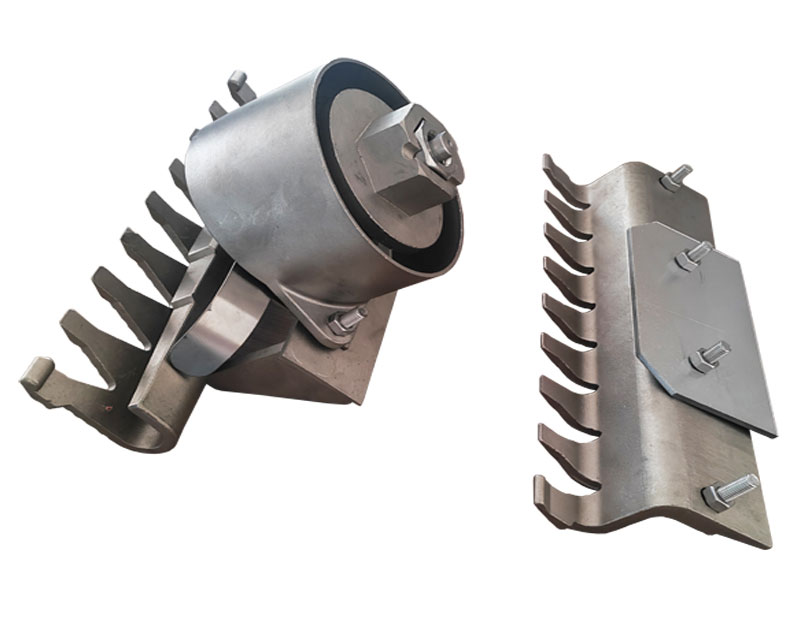

1	TENSIONING ASSEMBLY	14623-00	FLC503/FLC504/FLC513/FLC514

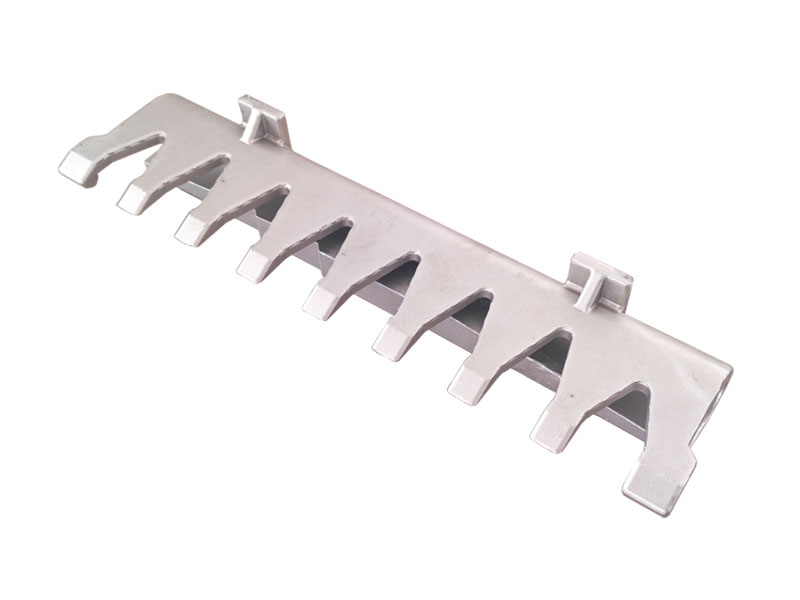

2	TENSIONING SIDE FINGER	14611-01	FLC503/FLC504/FLC513/FLC514

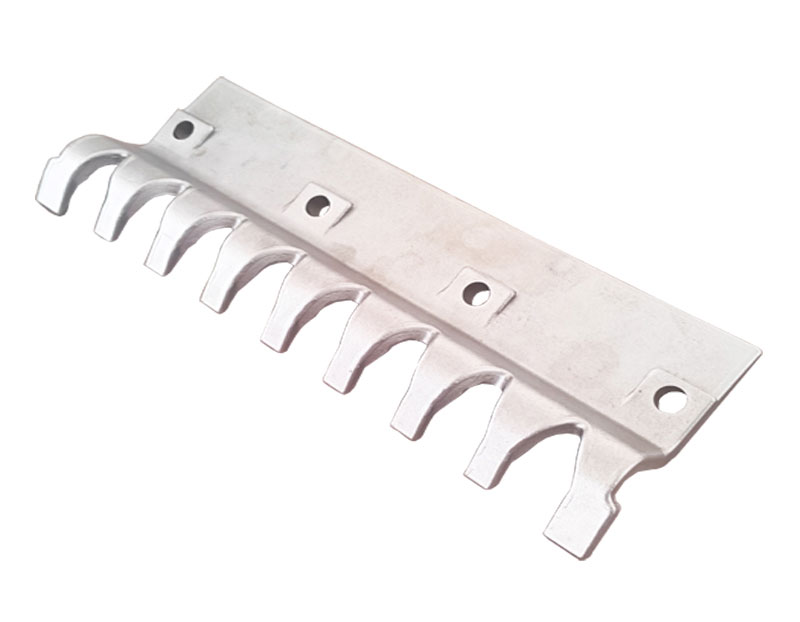

3	FIXED SIDE FINGERS	14612-01	FLC503/FLC504/FLC513/FLC514

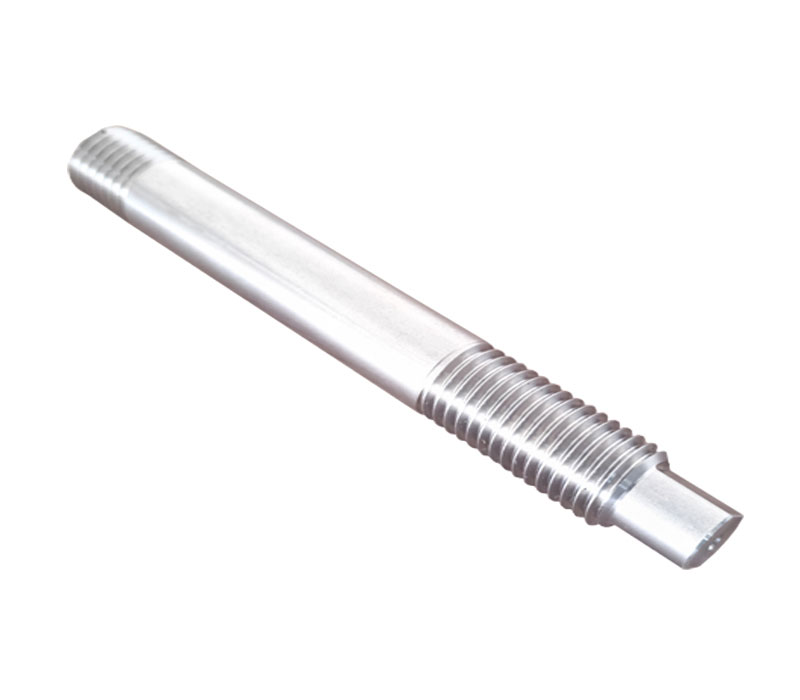

4	ADJUSTING BOLT	G0005479	FLC503/FLC504/FLC513/FLC514

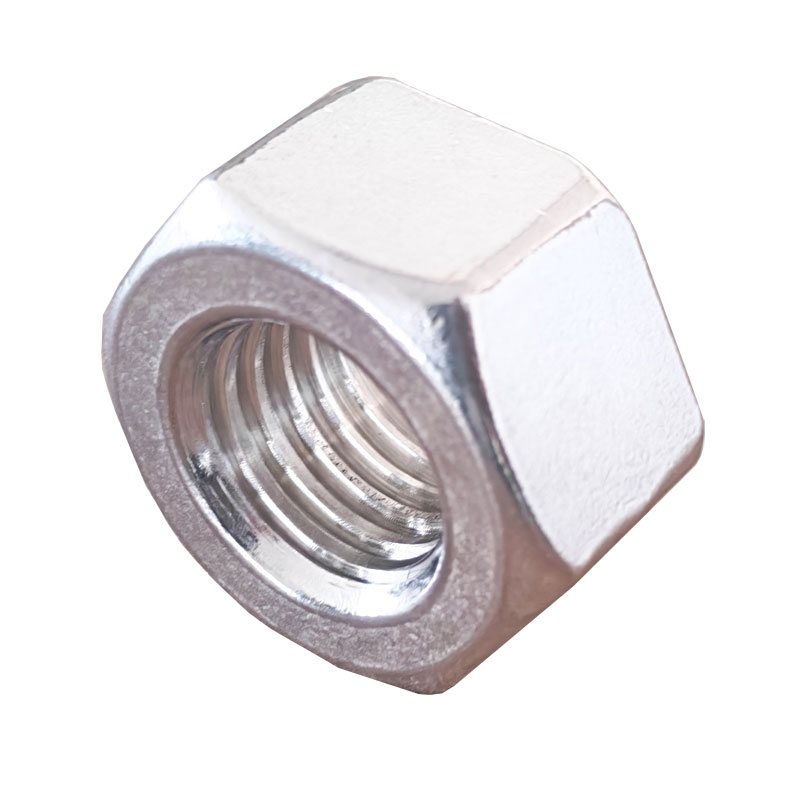

5	ADJUSTING NU	G0005428	FLC503/FLC504/FLC513/FLC514

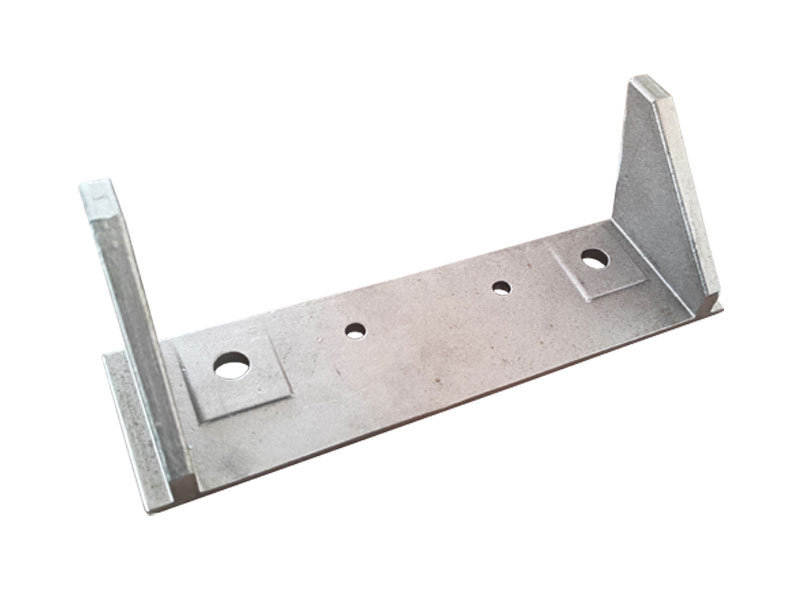

6	FINGERS GUIDE	14616-01	FLC503/FLC504/FLC513/FLC514

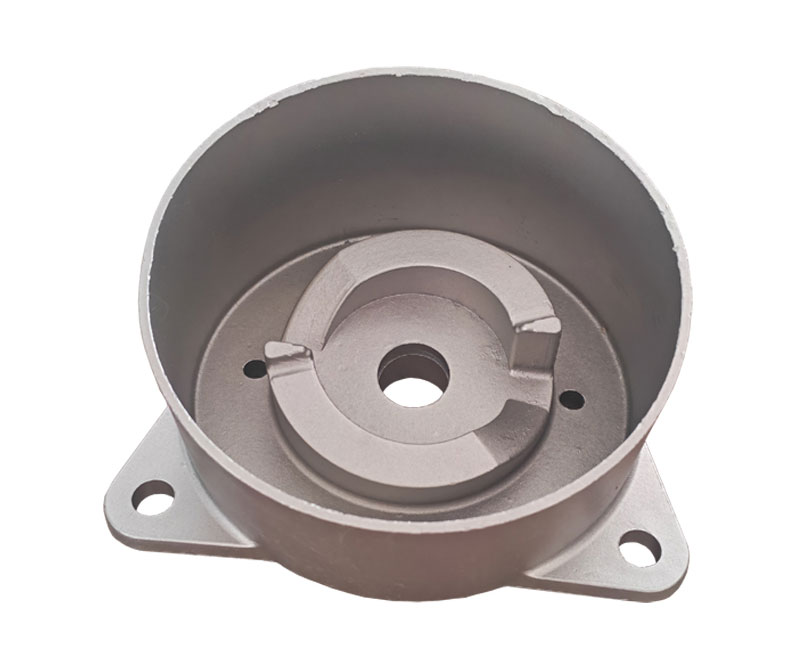

7	CAM HOUSING	14617-01	FLC503/FLC504/FLC513/FLC514
8	TENSIONING NUT	G0005480	FLC503/FLC504/FLC513/FLC514

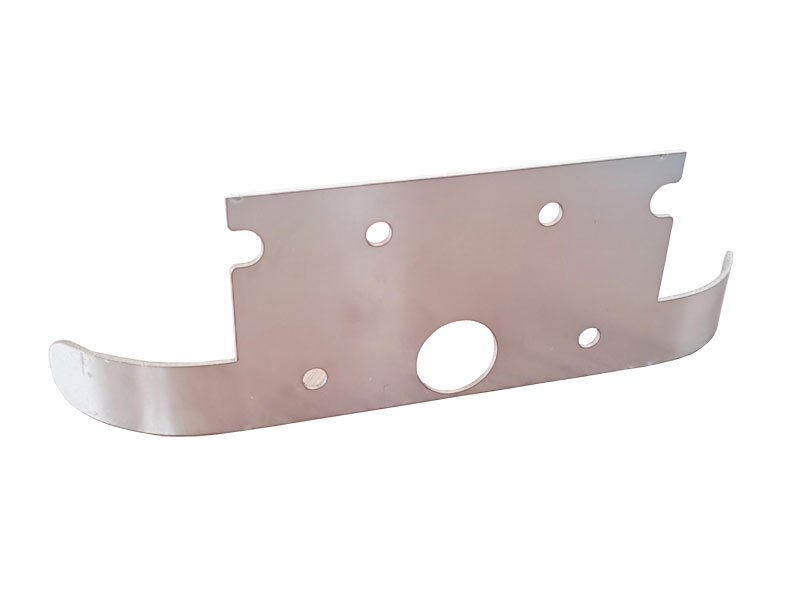

9	FINGERS RETURN SPRING	G0005466	FLC503/FLC504/FLC513/FLC514
10	HEX BOLT	G0002401	FLC503/FLC504/FLC513/FLC514

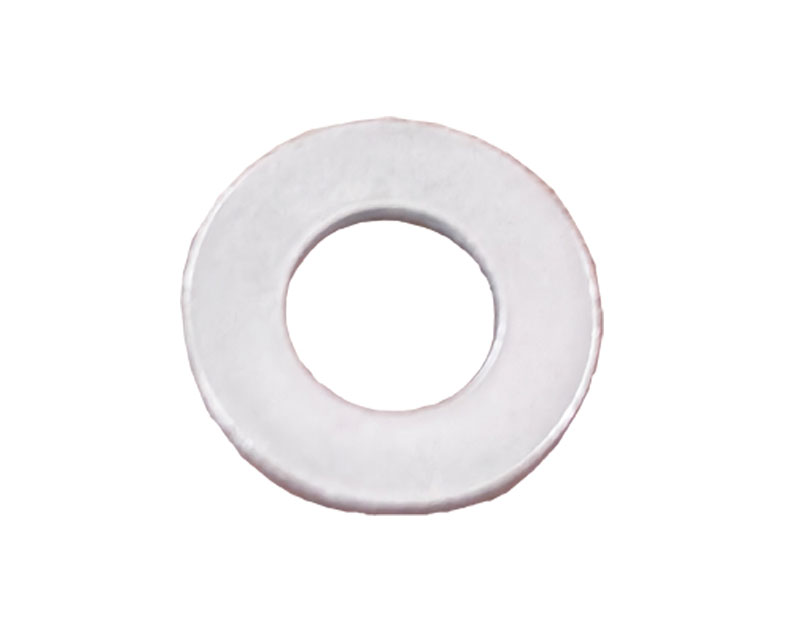

11	FLAT WASHER	WFSS-38-SAE	FLC503/FLC504/FLC513/FLC514

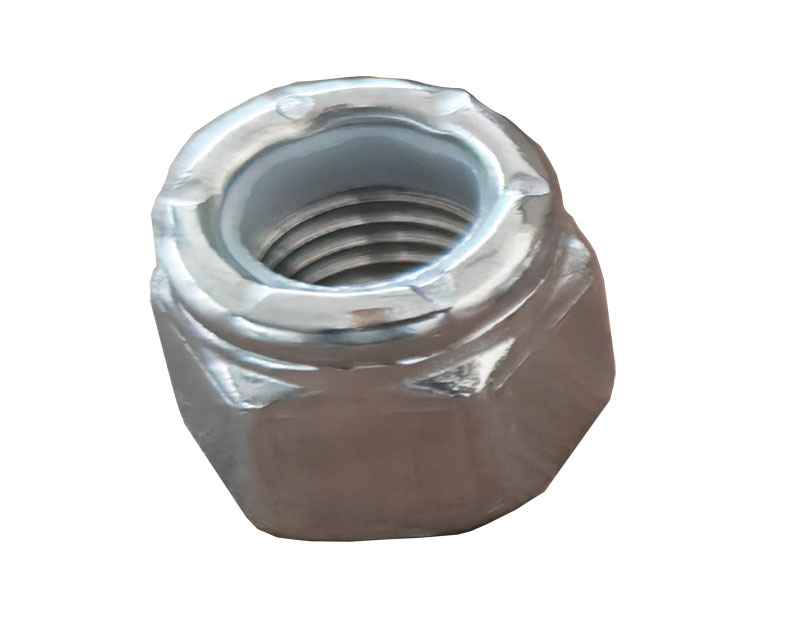

12	NY LOK	G0002402	FLC503/FLC504/FLC513/FLC514

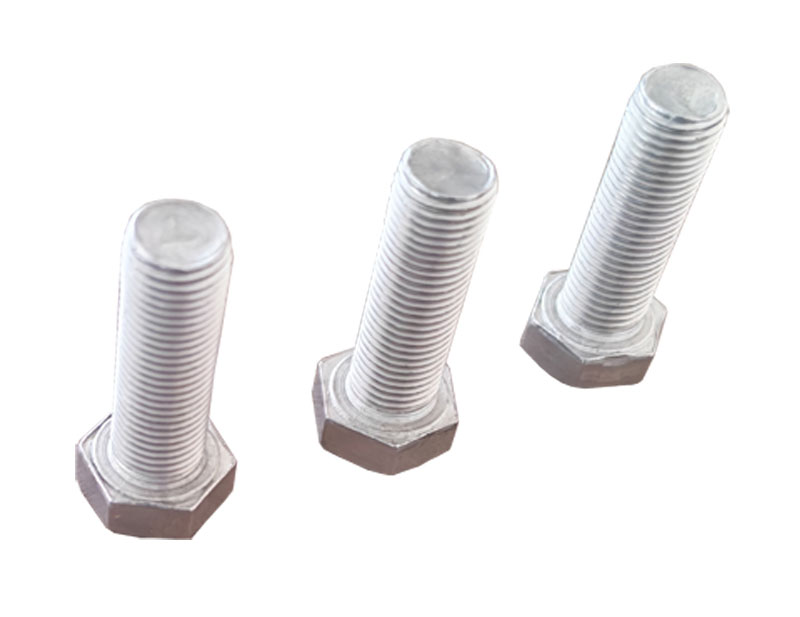

13	HEX BOLT	G0002400	FLC503/FLC504/FLC513/FLC514

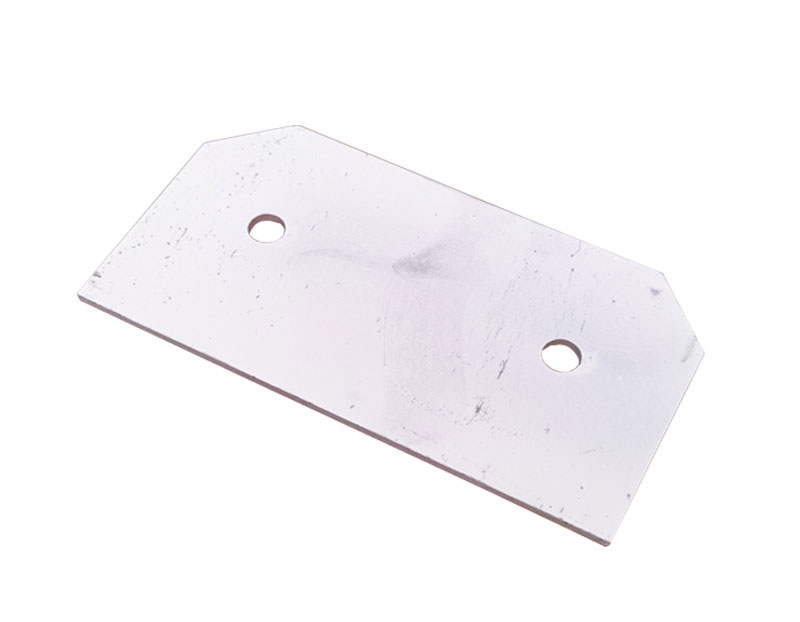

14	CLOSE-OFF PLATE	14625-01	FLC503/FLC504/FLC513/FLC514

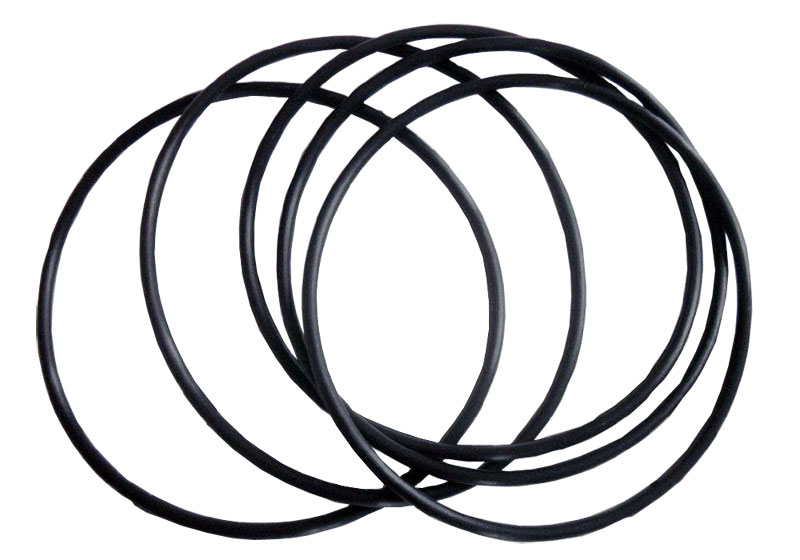

15	ORING1	ORV-ARP-245	FLC503/FLC504/FLC513/FLC514

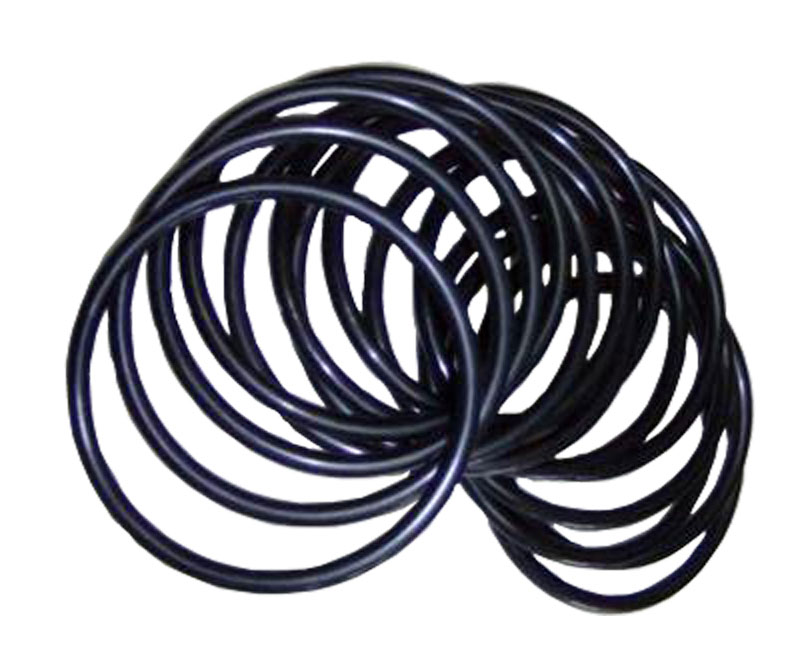

16	ORING2	G0003319	FLC503/FLC504/FLC513/FLC514

Xi'an TR Solids Control adopts advanced technology and mechanized production methods to produce Tianrui brand accessories to replace Derriok shale shaker and all-in-one machines. The shale shaker and all-in-one machine accessories produced by TR Solids Control meet the US API standards and have API certificates.
