What Is Function of Hydrocyclones in Oilfield Drilling?

In oilfield drilling operations, hydrocyclones serve as critical equipment in the solids control system, designed to treat drilling fluid (mud) generated during the drilling process. Usually matched with other solids control devices such as desanders, desilters, and shale shakers, hydrocyclones are an indispensable part of the oilfield drilling solids control system, ensuring the continuous and stable operation of drilling activities.

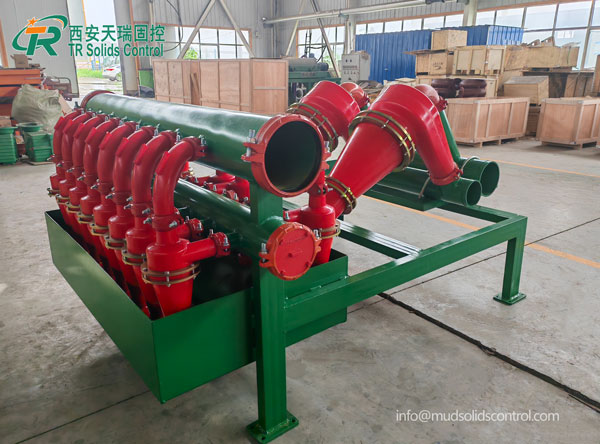

Hydrocyclones consist of cylindrical body, conical section, and inlet/outlet pipelines. They separate solid particles based on the centrifugal force principle to maintain the cleanliness and performance of drilling fluid. When drilling fluid enters the conical cavity of hydrocyclone, it forms high-speed rotational flow inside the cavity. Driven by centrifugal force, solid particles are thrown to the outer wall, then slide down along the cone and are discharged through the underflow port. Meanwhile, the purified drilling fluid returns to the drilling circulation system via the overflow port. Hydrocyclone units are generally composed of multiple individual hydrocyclones connected in parallel, allowing flexible adjustment of processing capacity according to drilling requirements.

Key Functions of Hydrocyclones in Drilling

1. Improve Drilling Efficiency：Hydrocyclones reduce the contact between drill bits and solid particles, minimizing bit wear and replacement frequency, thus enhancing overall drilling efficiency.

2. Reduce Operational Costs：The recycling of drilling fluid cuts down oilfield drilling costs. Hydrocyclones can lower the contamination level of drilling fluid and reduce its treatment costs.

3. Prolong Equipment Service Life：Clean drilling fluid decreases wear on drilling equipment, extends its service life, and reduces the occurrence of accidents during drilling operations.

Performance Optimization of Hydrocyclones

In response to the variation of drilling fluid volume under different drilling conditions, the performance of hydrocyclones can be optimized by adjusting their rotation speed and feed rate. When the drilling fluid volume is large, appropriately increase the rotation speed and reduce the feed rate; when the drilling fluid volume is small, decrease the rotation speed and increase the feed rate accordingly.

TR Solids Control’s hydrocyclones feature optimized designs that allow adjustment of internal structures, such as cone angle, overflow pipe specifications, and sand nozzle size, to further improve adaptability to varying drilling fluid volumes and enhance separation performance.

TR Solids Control offers comprehensive range of premium hydrocyclones engineered for efficient solids separation in oil and gas drilling operations. Our product lineup includes 10-inch desander hydrocyclones and 4-inch desilter hydrocyclones, both expertly designed to integrate seamlessly with Derrick drilling equipment.

We also provide specialized solutions tailored for Swaco drilling systems, featuring 12-inch hydrocyclones and 4-inch dual desilter hydrocyclones. All TR hydrocyclones deliver exceptional separation efficiency, reduce drilling fluid waste, and enhance the overall productivity of your drilling rigs.

Whether you need standard or customized hydrocyclone solutions, TR Solids Control ensures reliable performance and perfect compatibility with leading drilling equipment brands.

Hydrocyclones for drilling fluid are widely used in oil, natural gas, and other drilling projects. They can continuously and efficiently process large volumes of drilling fluid, reduce the discharge of drilling waste, mitigate environmental pollution, and ensure the smooth progress of drilling operations.
