Vacuum Degasser for Oilfield Drilling Fluid Treatment

In oil and gas drilling engineering, drilling fluid gas invasion is critical issue that cannot be ignored, as it is directly related to well control safety and operational efficiency. Gas invasion leads to reduced drilling fluid density, abnormal viscosity, decreased drilling efficiency, and even potential safety hazards such as well kicks and blowouts. The 300-model vacuum degasser launched by TR Solids Control has been widely applied in oilfield sites due to its high-efficiency degassing performance.

The Importance of Vacuum Degasser

Drilling fluid plays vital role in drilling process. It not only carries cuttings and cools drill bits but also balances formation pressure and prevents blowouts. However, when gas invades drilling fluid, a large number of bubbles are formed, resulting in reduced drilling fluid density, unstable performance, and even well control safety accidents. Therefore, timely and effective removal of gas from drilling fluid is the key to ensuring the smooth progress of drilling operations.

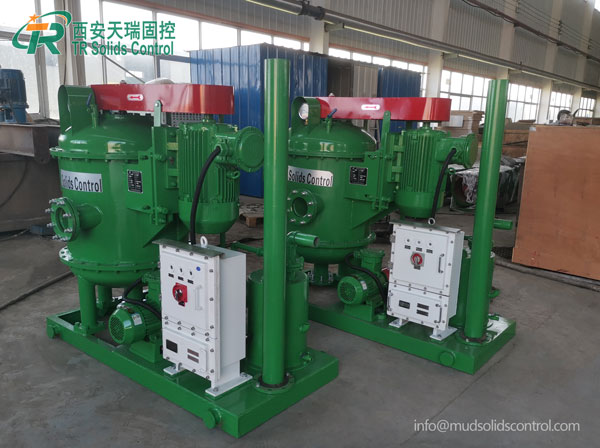

Working Principle of TR Solids Control 300-Model Vacuum Degasser

TR Solids Control’s vacuum degasser utilizes the suction effect of vacuum pump to form negative pressure zone inside the vacuum tank. Under atmospheric pressure, mud enters the hollow shaft of the rotor through the suction pipe, and then is ejected toward the tank wall through the windows around the hollow shaft. Under the action of collision and separation wheel, the drilling fluid is separated into thin layer, the bubbles immersed in it are broken, and gas is released. Subsequently, the gas is sucked by the vacuum pump and separated by the gas-water separator, then discharged to safe area through exhaust pipe, while the mud is discharged out of tank by impeller. This process ensures the effective removal of gas from drilling fluid and restores the density and performance of mud.

Technical Parameters and Advantages of 300-Model Vacuum Degasser

1. Maximum Processing Capacity: 300 cubic meters of gas per hour, meeting the needs of large-scale drilling operations.

2. Vacuum Range: -0.03 to -0.065 MPa, ensuring effective gas removal under various working conditions.

3. Transmission Ratio: 1.68, optimizing equipment performance and improving degassing efficiency.

4. Vacuum Pump Power: 4 kW, providing stable vacuum source to ensure continuous and efficient operation of equipment.

5. Main Motor Power: 30 kW, driving the equipment to run at high speed and ensuring degassing effect.

6. Rotation Speed: 970 revolutions per minute (rpm), achieving full separation of mud and gas through high-speed rotation.

7. Overall Dimensions: 2250×1330×1650 mm, the compact design facilitates installation and operation, saving valuable working space.

Advantages of TR Solids Control Vacuum Degasser

1. High Efficiency & Stability: Quickly and effectively remove gas from drilling fluid, restore mud performance, and ensure the smooth progress of drilling operations.

2. Safety & Reliability: Advanced vacuum pump and gas-water separator technologies are adopted to ensure safe gas discharge and avoid well control safety accidents.

3. Easy Operation: The compact design and user-friendly operation interface make equipment installation, commissioning, and maintenance simple and fast.

4. Comprehensive Services: TR Solids Control provides pre-sales, in-sales, and after-sales services to ensure customers receive timely technical support and solutions during use.

Choosing reliable vacuum degasser is the key to ensuring drilling safety and improving efficiency. With its high-efficiency degassing, stable operation, convenient operation, and optimized parameters, TR Solids Control’s products have become the preferred equipment for gas invasion treatment. In the future, as drilling advances toward deep and complex formations and equipment performance requirements increase, TR Solids Control will continue to optimize its technology and provide better drilling fluid treatment solutions.
