Introduction and Supply of 140m³/h Dual-Track Shale Shaker

The dual-track shale shaker is new generation of high-efficiency solid-liquid separation equipment developed by TR Company. Utilizing dual-track vibration technology, it combines the advantages of linear and circular vibration, enabling more effective separation of solid particles in drilling fluids. This equipment is suitable for processing high-viscosity, high-specific-gravity drilling fluids, with separation efficiency more than 30% higher than traditional shale shakers. The dual-track shale shaker not only improves screening efficiency but also extends the service life of shaker screen and reduces operating costs.

The dual-track shale shaker is high-efficiency screening device that achieves efficient material separation through unique vibration trajectory. Below is an introduction to dual-track shale shaker developed by TR Solid Control, with processing capacity of 140 m³/h.

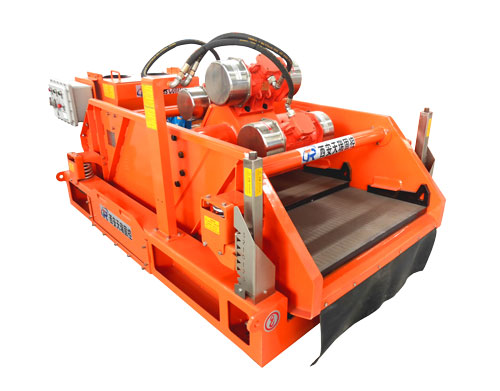

TR Solid Control 140m³/h dual-track shale shaker, model TRPZS584, is high-efficiency shale shaker that switches between translational elliptical and linear dual tracks.

Working Principle：The TRPZS584 dual-track shale shaker uses three vibrating motors. By adjusting the phase angle and speed of the motors, the screen box can simultaneously operate on both linear and elliptical tracks. When the linear track mode, the vibration intensity is high, the material moves rapidly across the screen surface, and the processing capacity is large. When the elliptical track mode, the material's movement on the screen surface is complex, and the residence time is long, which helps to improve the recovery rate and reduce screen clogging.

Structural Features：There are two sets of excitation sources, allowing for free switching between linear and translational elliptical trajectories. Equipped with renowned brand motor, it is suitable for outdoor explosion-proof environments. It adopts frame screen, equipped with mechanical ratchet mechanism for tilt adjustment, and also features designs such as anti-loosening of vibration motor connecting bolts, all-round anti-splashing, and heavy-duty anti-corrosion coating.

1. Two motion tracks - adapt to different working conditions requirements.

2. High-quality motor - adapt to the harsh environment of outdoor explosion-proof use.

3. Frame screen & adjustable deck angle - easy and reliable to replace, maintenance-free.

4. Patented fast pressing screen - easy to replace the screen.

5. Anti-loosening thread technology - reliable connections in vibrating environments.

6. All-round anti-splash – significantly reduces mud splash.

7. Heavy-duty anti-corrosion coating - ensures the long-term use of the equipment.

8. Integrated design with double or triple integral base and integral mud box is available.

Technical Parameters:

Application：It is widely used in oil and gas drilling, coalbed methane development, trenchless directional drilling, geothermal drilling, tunnel boring machine construction and other fields for solid-liquid separation of drilling fluid or other mud, separating solid particles with particle size greater than 76μm.

TR Solids Control offers variety of dual-track shale shakers, customizable to meet specific user needs, such as dual, triple, or quadruple integrated bases and mud boxes. Dual-track shale shakers offer screening efficiency more than 30% higher than ordinary shale shakers, with larger throughput and higher precision. Our products boast high quality and reliability, excellent cost-effectiveness, and are suitable for oil and gas drilling projects. For inquiries, please contact: info@mudsolidscontrol.com
