Shale Shaker: The First Line of Defense in Drilling Fluid Solids Control

What Is a Shale Shaker?

The shale shaker is the first stage equipment of solids control equipments used in drilling fluids process system. It is designed to separate drilled cuttings and other solid particles from drilling fluid (mud), helping to maintain proper mud properties and improve drilling efficiency.

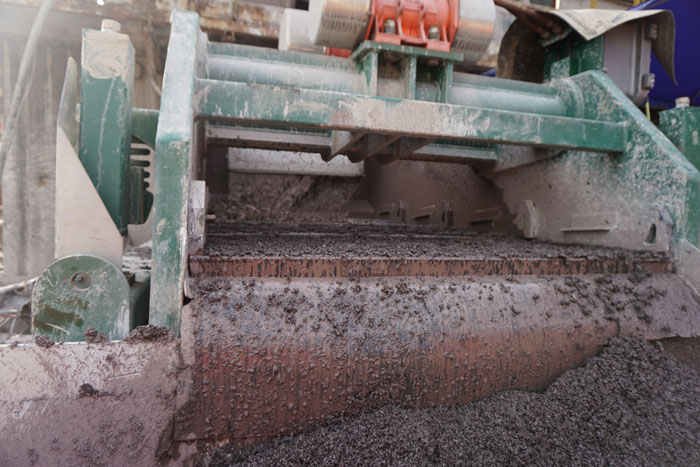

After the drilling fluid returns from the well, it is evenly spread on the inclined screen cloth. Two vibrating motors run in reverse synchronization, generating high-frequency exciting force with a vibration intensity of 4~7G and an amplitude of 5~8 mm to drive the continuous vibration of the screen box. This equipment can effectively separate solid particles of 74 μm and above. The liquid phase and fine particles in the drilling fluid pass through the screen and fall into the mud tank for recycling, while large-sized cuttings jump and move forward along the screen surface under vibration and are finally discharged from the slag outlet, realizing continuous solid-liquid separation of drilling fluid and cuttings.

As the first stage of a solids control system, the shale shaker plays a critical role in protecting downstream equipment such as desanders, desilters, centrifuges, and mud pumps. Efficient solids removal reduces drilling fluid loss, lowers operating costs, and improves overall drilling performance.

The shale shaker works by using vibrating motors to generate linear, elliptical, or circular motion. As drilling fluid flows onto the shaker screens, liquid passes through the screen openings while solid particles are conveyed off the screen and discharged as waste.
