Improve Drilling Performance with Advanced Well Site Solids Handling Equipment

In the demanding world of oil and gas drilling, effective management of drilled solids is not just an operational preference—it's a necessity. The right well site solids handling equipment ensures that drilling fluids maintain their properties, equipment longevity is maximized, and overall project costs remain under control. TR Solids Control, a trusted China-based manufacturer, delivers state-of-the-art solids control systems and shale shakers designed to meet the rigorous demands of modern drilling operations.

During rotary drilling, the drill bit generates countless rock cuttings and solid particles. Efficient well site solids handling equipment removes unwanted cuttings, allowing clean drilling fluid to recirculate. This process, known as solids control, directly impacts drilling efficiency, safety, and environmental stewardship.

Core Components of Solids Control System

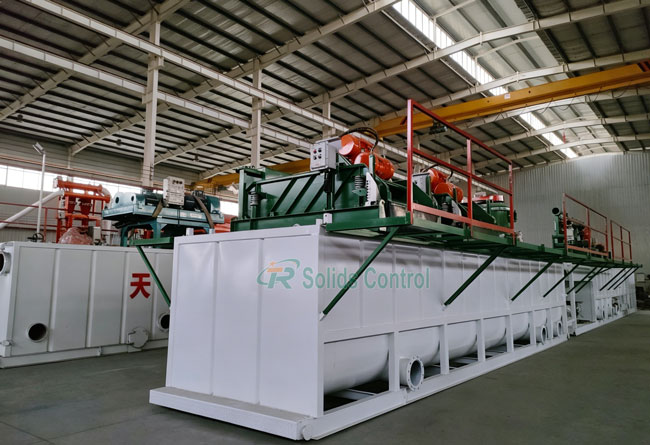

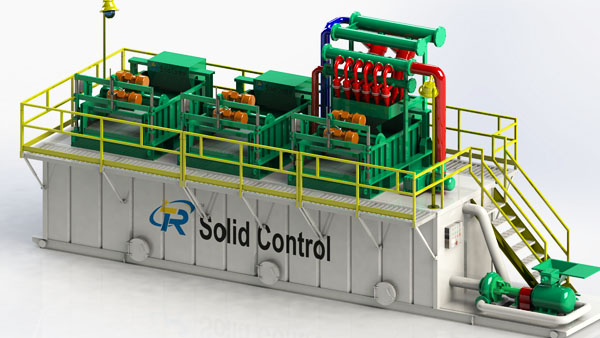

The complete solids control system from TR Solids Control integrates multiple stages of separation. Each piece of equipment plays a specific role in progressively removing particles of different sizes.

1. Shale Shaker

The shale shaker serves as the first barrier of the solids control system, removing large cuttings larger than the screen mesh size. Its separation efficiency directly affects the load and service life of downstream equipment. Key selection parameters include:

• Processing capacity: Must match the maximum flow rate of the mud pumps; a margin of at least 15% is recommended.


• Vibration mechanism: Linear motion shakers generally outperform circular motion designs, offering higher conveying speed and more effective screening.

• Screen tensioning and change-out convenience: Directly impacts field operation efficiency and screen life.

TR Solids Control linear motion shale shakers feature adjustable excitation force and vibration angle (0°–6°), adapting to different formation characteristics and flow rate variations. Their patented quick‑tensioning screen system allows a single screen change in under 5 minutes, significantly reducing non‑productive time. With proper screen mesh selection (typically API 80–200), first‑stage separation efficiency can exceed 85%.

2. Desander and Desilter

After the shale shaker, the drilling fluid still contains a significant amount of sand (45–75 µm) and silt (15–44 µm). If not removed, these medium‑sized solids accelerate wear on mud pump valves, liners, and pipe walls.

Both desanders and desilters use hydrocyclone technology, relying on centrifugal and gravitational forces to achieve solid‑liquid separation. Selection considerations:

• Cyclone liner material: High‑wear polyurethane or ceramic liners greatly extend service life.

• Stable feed pressure: Typically 220–275 kPa required; underflow should discharge in "spray" pattern for optimum performance.

TR Solids Control desander cyclones (10″ or 12″ cones) and desilter cyclones (4″ cones) are manufactured with high‑wear polyurethane, providing a sharp separation curve and dry underflow. Field data shows that at 250 kPa feed pressure, the desander removes over 90% of solids >45 µm, and the desilter removes over 85% of solids >20 µm.

3. Decanter Centrifuge

For oil‑based muds, high‑density water‑based muds, and environmentally sensitive areas, decanter centrifuge is essential.

• Barite recovery: By controlling differential speed, barite (specific gravity ~4.2) is settled and returned to the system.


• Ultra‑fines removal: Separates 2–5 µm low‑specific‑gravity cuttings, reducing plastic viscosity and yield point.

• Waste volume reduction: Effluent from the centrifuge can be reused; solids discharge moisture content can be reduced to 15–25%.

Key centrifuge selection parameters: bowl speed (typically 3000–4000 rpm), differential speed range (0–35 rpm adjustable), and length‑to‑diameter ratio (typically >4.0). TR Solids Control offers variable‑frequency centrifuges with automatic differential speed adjustment, optimizing separation based on real‑time solids loading. In deep well project, two centrifuges in series (roughing + polishing) achieved 92% barite recovery and over 80% ultra‑fines removal, significantly reducing mud makeup costs.

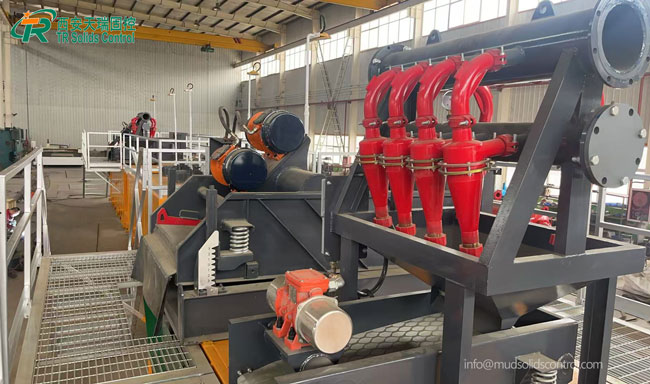

4. Mud Cleaner

The mud cleaner combines a set of hydrocyclones (desander and desilter cones) mounted over fine-mesh shale shaker. It provides a compact, efficient solution for intermediate solids removal, particularly in land drilling operations where space is at premium.

TR Solids Control: Your Partner in Drilling Solids Management

As a leading China solids control system and shale shaker manufacturer, TR Solids Control brings over a decade of engineering expertise to global oil and gas projects. Our equipment is built to API standards and tested under extreme field conditions.

• Custom Engineered Systems: Every drilling project has unique formation characteristics, flow rates, and mud programs. We design solids control systems tailored to your well site specifications, whether for HDD, CBM, oil & gas exploration, or geothermal drilling.

• High-Quality Manufacturing: Using premium materials, advanced welding techniques, and rigorous quality control, our well site solids handling equipment delivers exceptional durability in harsh environments.

• Global Support & Service: From technical consultation to after-sales support, our team ensures your equipment operates at peak performance. We offer spare parts, screen replacement, and on-site training.

• Cost-Effective Solutions: By optimizing solids removal efficiency, we help you reduce mud consumption, lower disposal costs.

Applications Across Oil & Gas Drilling Projects

Our equipment has been deployed in:

1. Onshore oil and gas drilling – from desert rigs to arctic platforms

2. Offshore drilling units – jack-up rigs, semi-submersibles, and drill ships

3. Horizontal directional drilling (HDD) – pipeline crossing projects

4. Coal bed methane (CBM) – shallow to medium-depth wells

5. Geothermal drilling – high-temperature fluid management

How to Choose the Right Well Site Solids Handling System

Selecting the optimal configuration depends on several factors:

• Flow rate (GPM or L/min)

• Drilling fluid type (water-based, oil-based, or synthetic)

• Expected solids loading (penetration rate and hole size)

• Available space and power on the rig site

• Disposal requirements (onsite burial, haul-off, or closed-loop system)

TR Solids Control provides a free technical assessment to help you specify the right combination of shale shakers, hydrocyclones, centrifuges, and tanks. We also offer modular solids control systems that are easy to transport and assemble.

Future Trends in Drilling Solids Management

The industry is moving toward closed-loop systems that minimize environmental footprint. TR Solids Control is at the forefront, offering integrated solids control systems with automated control panels, real-time solids monitoring, and vacuum drying units for near-zero discharge drilling. Our R&D team continuously improves screen technology, cyclone geometry, and centrifuge efficiency to keep your operations ahead of regulations.

Partner with TR Solids Control for Uncompromised Performance

From a single shale shaker to complete solids control system, TR Solids Control delivers reliable, high-performance well site solids handling equipment for oil and gas drilling projects worldwide. As a premier China solids control system and shale shaker manufacturer, we combine local manufacturing advantages with global quality standards.

Don't let drilled solids slow down your progress. Contact TR Solids Control today for customized quote and technical consultation. Let us help you achieve cleaner mud, faster drilling, and lower costs.
