How to Select Replacement Shaker Screen Brands & Models?

Drilling Fluid Shaker Screens are core filtration components in oil drilling operations, primarily designed to separate solid particles from drilling fluids and maintain stable drilling fluid performance. Selecting the right replacement drilling fluid shaker screen requires holistic evaluation of material compatibility, mesh size, structural design, process adaptability, and post-use maintenance to achieve high-efficiency screening and cost control.

The Role of Shaker Screens: Key to Separation Efficiency

Shaker Screens are critical components in drilling fluid solids control systems, directly impacting separation outcomes and drilling efficiency. When drilling mud containing cuttings returns from the wellbore, it is evenly distributed across the screen surface through shale shaker feed inlet. Driven by high-frequency vibration motors or exciters, the screen generates an elliptical or linear three-dimensional vibration trajectory. This vibration forces liquid and fine particles in the mud to pass through screen apertures into the mud pit, while larger sand grains and rock cuttings are trapped on the screen surface and discharged through the cuttings outlet, thus realizing purification and recycling of drilling fluid.

Selection Factors for Replacement Drilling Fluid Shaker Screens

Material Compatibility

In high-temperature, high-pressure, and high-salinity drilling environments, shaker screens often fail due to corrosion or fracture, leading to reduced screening efficiency and increased replacement frequency, making material selection a top priority.

1. Stainless Steel Screens: Made of 316L stainless steel with surface-strengthening treatment, the screens offer enhanced tensile strength, maintain stability in extreme conditions, and extend service life.

2. Polyurethane Screens: 3–5 times more wear-resistant than conventional screens, ideal for handling highly abrasive materials such as quartz sand, reducing the risk of clogging.

3. Composite Material Screens: Combining metal frames with polyurethane surfaces, these screens integrate structural rigidity and wear resistance, suitable for high-efficiency drilling operations.

Mesh Size & Structural Design

Mesh size directly determines screening precision and should be selected based on solid particle size in drilling fluid, cutting coarseness, and formation characteristics. TR Solids Control’s replacement drilling fluid shaker screens cover mesh size range from 20 to 400 mesh.

1. Coarse Screens (10–20 mesh): Used for primary filtration of large cuttings, reducing load on downstream solids control equipment (e.g., desanders, desilters). Ideal for drilling stages with fast penetration rates, soft formations, and large cuttings.

2. Fine Screens (100–300 mesh): Designed for separating fine solid particles and improving drilling fluid cleanliness. Suitable for high-precision solids control scenarios such as shale gas development, deepwater drilling, and horizontal well drilling where drilling fluid performance is critical.

3. Multi-layer Composite Screens: Adopting trapezoidal or hook-edge screen designs for uniform tension distribution, these screens reduce the risk of stress corrosion cracking. Covering 30–300 mesh, they are suitable for screening mixed cuttings in complex formations.

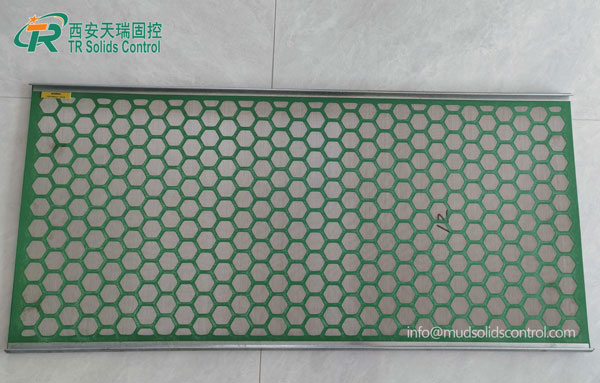

Common frame types for oil drilling shaker screens include flat screens and pyramid (wave-shaped) screens. Composite frame screens are widely used as replacements for Swaco Mongoose shaker screens. When selecting models, ensure frame structure compatibility with on-site shakers.

Screen weaving methods also affect filtration efficiency. The common bidirectional corrugated weaving process ensures uniform aperture size and structural robustness. TR Solids Control’s drilling fluid shaker screens feature modular design, supporting double-layer or triple-layer configurations for graded separation of cuttings with different particle sizes. Combined with high-frequency vibration and G-force control technology, these screens effectively separate fine particles from high-density drilling mud.

Brand & Model Compatibility

Choosing the right replacement shaker screen brand and model is essential to ensure compatibility with on-site shakers, avoiding installation deviations and insufficient screening efficiency.

TR Solids Control is a leading domestic supplier of high-quality shaker screens, offering customized production to match screen materials, mesh sizes, and structures to specific operating conditions. Our products are direct replacements for shaker screens from international mainstream brands such as Derrick, Swaco, and Brandt — including composite frame screens for Swaco Mongoose shakers and multi-layer composite screens for Derrick FLC series shakers. Covering 20–400 mesh, our screens are suitable for diverse scenarios such as soft formations, hard rock formations, and deepwater drilling.

Common Issues & Maintenance Tips

Proper maintenance extends screen service life and reduces replacement frequency, so maintenance convenience should be considered during selection:

1. Wear & Corrosion Issues: For sites with severe wear or corrosion, prioritize polyurethane composite screens. Regularly clean cuttings from screen surfaces with high-pressure water guns to avoid chemical residue corrosion; prevent direct contact between screens and drilling mud with pH values exceeding 11.

2. Clogging & Vibration Abnormalities: Clogging or vibration motor malfunctions can cause operational issues. Choose anti-clogging screens (polyurethane composite screens). During operation, regularly check screen tension to avoid abnormal vibration caused by insufficient tension, which can impact screening efficiency.

3. Edge Leakage Issues: Caused by aging screen box seals or excessive feed flow rates. When selecting screens, pay attention to edge sealing design and equip screens with sealing strips. Adjust the angle of flow distribution baffles during use to ensure uniform feeding.

Selecting replacement drilling fluid shaker screens requires comprehensive comparison of multiple factors. TR Solids Control provides one-stop customized replacement solutions based on customers’ shaker models and drilling conditions, ensuring optimal screen-equipment compatibility, enhanced drilling fluid screening efficiency, and reduced operational costs. All our screens comply with SY/T 5612-2018 and API RP 13C standards.
