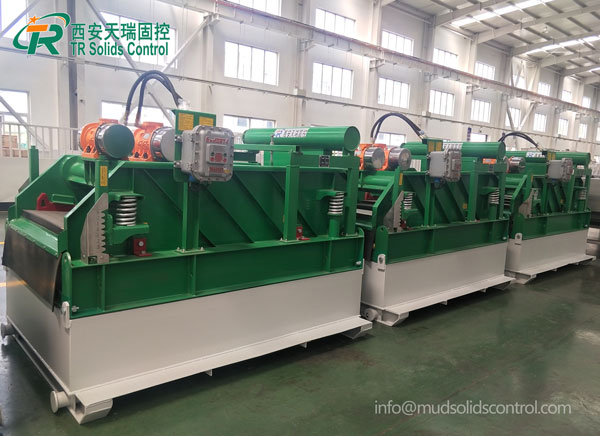

High-Frequency Drying Shaker for Drilling Waste Treatment Equipment

In oilfield drilling and production equipment, the High-Frequency Drying Shaker independently developed by TR Solids Control is mud shale shaker with high excitation intensity. It can meet various requirements for dehydration, screening and purification of drilling cuttings waste, and is a key equipment in the oil drilling and production waste treatment system.

The Mud Drying Shaker (referred to as Drying Shaker) is a type of balanced elliptical shale shaker. Its main function is to reduce the liquid phase adsorbed by the drilling cuttings discharged from the primary shale shaker and hydrocyclone, and return the treated liquid phase to the circulation system, achieving the dual goals of resource recovery and environmental protection treatment. It is designed to reduce the surface moisture of granular materials, mud or drilling cuttings and complete solid-liquid separation, realizing the dry stacking treatment of drilling cuttings. Widely used in oil drilling, mining and environmental protection fields, it has the advantages of large processing capacity and high efficiency, which can effectively improve the utilization rate of waste.

As a solid control equipment for oil drilling, the High-Frequency Drying Shaker adopts high-frequency vibration technology to separate drilling cuttings from mud and conduct drying treatment on drilling cuttings. It separates and recovers the effective liquid from waste drilling cuttings through high-frequency vibration, which not only improves the purification effect of drilling fluid and the dryness of drilling cuttings, but also reduces the waste discharge, complying with the requirements of national environmental protection policies.

The High-Frequency Drying Shaker is an important equipment to ensure the continuous and effective operation of the entire drilling cuttings tail slurry treatment. It directly dries the waste discharged from the shale shaker, desander and desilter during the drilling process, and realizes the dry stacking treatment of solid phase after drying. The High-Frequency Drying Shaker of TR Solids Control can be specially customized and designed according to the different processing requirements of customers to meet the national environmental protection requirements for various mining, drilling, water treatment and other projects.

Features of High-Frequency Drying Shaker for Oil Drilling Equipment

1. The excitation intensity is as high as 8.0G and adjustable, which can effectively dry drilling cuttings;

2. The integral heat treatment process of the screen box ensures long-term stable operation under high excitation intensity;

3. The thermal relay installed in the electric control box has dual protection functions of overload and phase loss;

4. The movement track is linear with large amplitude and fast movement speed, enabling rapid solid-liquid separation;

5. Adopting funnel-type feeding design, which effectively reduces the feeding height and facilitates the feeding of the conveyor;

6. Selected well-known brand vibration motors such as OLI or Martin, with stable operation and low failure rate;

7. Electrical components are selected from well-known brands such as Siemens, Schneider or ABB to ensure the reliability of the electrical system.

TR Solids Control's Drying Shaker is widely applied in oil and gas drilling mud solids control systems, oilfield waste treatment systems, oily hazardous waste and solid waste treatment, trenchless HDD mud recovery, municipal mud treatment, coalbed methane drilling mud treatment, shield mud water separation systems, oil mud purification equipment, river dredging projects, hazardous waste and solid waste treatment of refining and chemical enterprises such as petrochemical industry, etc.
