Oil drilling vacuum degasser for working process and characteristics

Vacuum degassers in oil drilling are core solids control equipment for treating gas-leaked drilling fluids in oil drilling operations. They achieve efficient gas-liquid separation through a negative pressure environment, playing a crucial role in ensuring drilling safety and improving operational efficiency.

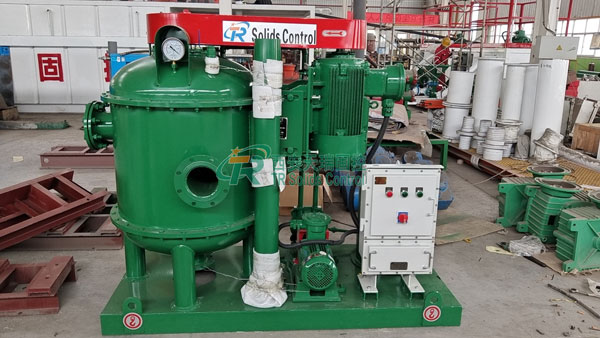

The vacuum degasser produced by Shaanxi TR Solids Control can quickly remove various gases that have invaded the drilling fluid, playing a vital role in restoring the specific gravity of the drilling mud and stabilizing its properties. It is an indispensable piece of equipment for exploration wells, ultra-deep wells, and underbalanced well projects.

It can also be used as a high-power agitator, suitable for use in various mud circulation and purification systems. This equipment is a negative pressure deaerator with a scientifically designed structure that can effectively separate gas and liquid, filter out impurities, and ensure that the exhaust pipe is always unobstructed.

I. Working Principle of Drilling Fluid Vacuum Degasser

Vacuum degasser is a device that uses a vacuum pump to create a vacuum inside a tank, resulting in negative pressure. The slurry is then drawn into the tank and further separated from the gas in the slurry.

The vacuum degasser utilizes the suction effect of a vacuum pump to create a negative pressure zone inside the vacuum tank. Under atmospheric pressure, the drilling mud enters the hollow shaft of the rotor through the suction pipe, and is then ejected towards the tank wall through windows around the hollow shaft. Due to the collision and the action of the separator wheel, the drilling mud is separated into thin layers, air bubbles embedded in the mud break up, and gas escapes. Through the suction of the vacuum pump and the separation by the gas-water separator, the gas is discharged to a safe area through the separator's exhaust, while the mud is discharged outside the tank by the impeller. Because the main motor starts first, the impeller connected to the motor rotates at high speed, so the mud can only enter the tank through the suction pipe and will not be sucked in through the discharge pipe.

TR Solids Control, as a manufacturer of vacuum degassers for oil drilling fluids, provides you with high-quality vacuum degassers. Factory direct sales offer competitive prices, and we also provide satisfactory after-sales technical services.

II. Features of Mud Vacuum Degassing Device

1. It has high degassing efficiency, ranging from 95% to 99%, and can remove a large amount of gas from the mud.

2. The electrical components for the control cabinet are selected from international brands such as Schneider or Siemens.

3. Self-priming devices do not require a power supply pump.

4. It can be used as a high-powered mixer.

5. It has a compact design that takes up little space, is easy to install and maintain, and is simple to start.

6. Eliminating corrosion reduces repair and maintenance costs.

7. An optional infrared liquid level monitoring system can be installed to enable automated control of the equipment.

Xi'an TR Solids Control's oil drilling vacuum degasser, based on "negative pressure separation + mechanical crushing" technology, has become an indispensable "mud purification tool" in drilling operations through its safe and efficient structural design and modular parameter configuration. Its applications extend from oil drilling to construction engineering and environmental protection fields, including oil drilling, coalbed methane drilling, trenchless drilling, geothermal wells, and urban tunnel boring machines. TR Solids Control equipment is upgrading towards automation and low energy consumption, providing crucial support for energy development and infrastructure construction.
