How to choose sludge vacuum pump? Analyze the functions and application advantages of solid conveying pumps!

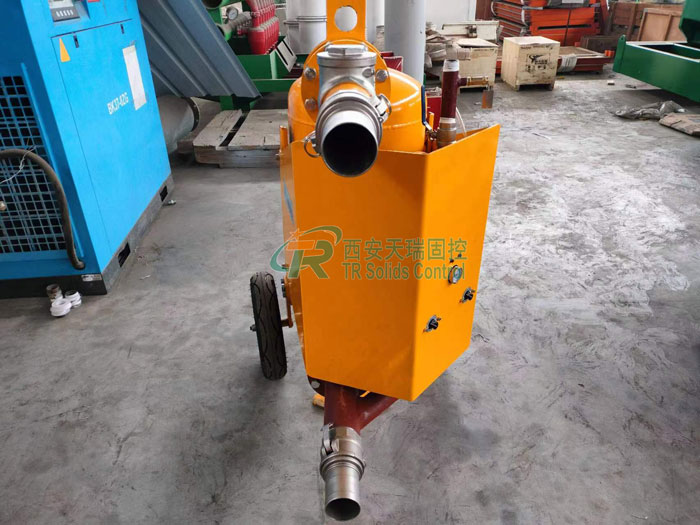

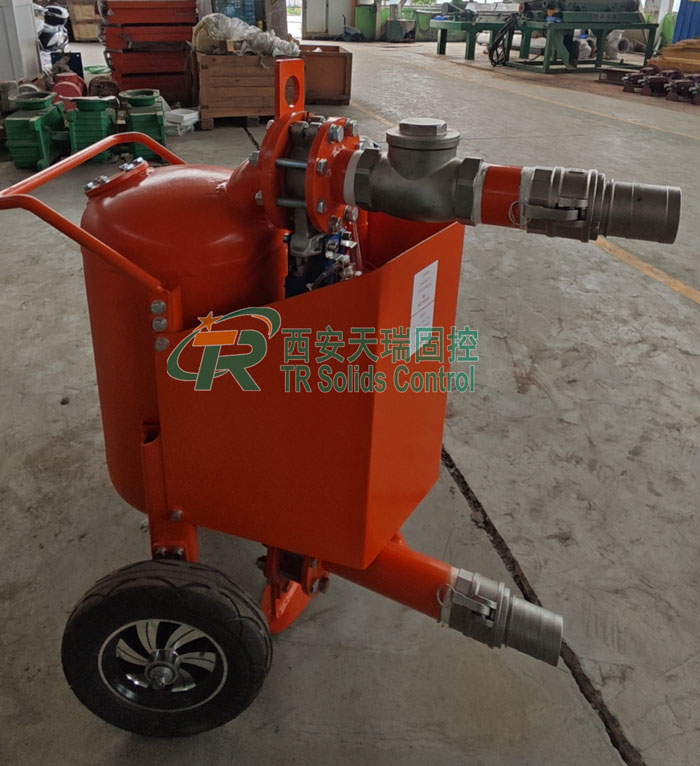

Sludge vacuum pump (also known as solid conveying pump, drill cuttings conveying pump) is high-load, strong suction pneumatic vacuum equipment, which uses pneumatic vacuum to form vacuum for suction and then converts it into positive pressure to achieve material discharge.

I. Working Principle of the Sludge Vacuum Pump

The working principle of the TR vacuum pump is that when compressed air is forced through the pump body, high vacuum is generated inside the pump tank, and the material enters the pump tank through the suction line. After few seconds, the valve will change the direction of the airway, creating positive pressure inside the pump tank, forcing the material out of the pump tank through the discharge line. Because it does not require electricity, only compressed air, the Guanneng solid vacuum pump can be safely used in industries with explosion-proof requirements such as oil, gas, and coal. Its specific working process can be divided into three stages:

1. Suction Phase: After the vacuum pump is activated, the pressure inside the pump chamber decreases, and the sludge is drawn through the pipe into the separation tank due to the pressure differential.

2. Separation Phase: The gas-solid mixture decelerates within the separation tank, and the sludge settles due to gravity, while the gas is further extracted by the vacuum pump.

3. Discharge Phase: Accumulated sludge is discharged through the discharge valve on timed or continuous basis, completing the conveying cycle.

II. What is the function of the sludge vacuum pump?

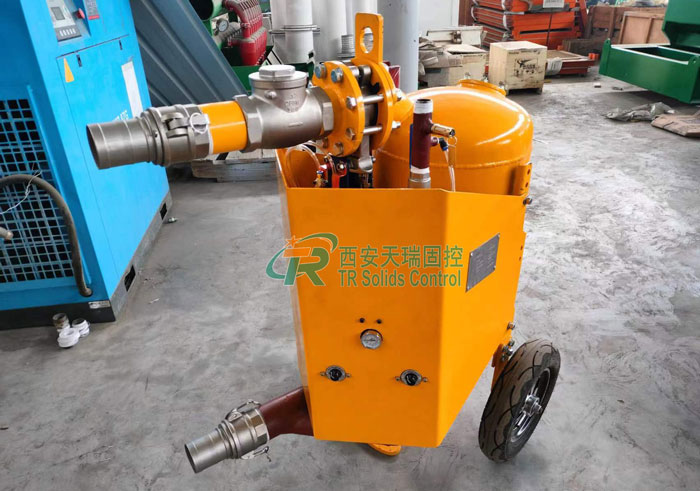

The sludge vacuum pump is device specifically designed for conveying and discharging viscous wastewater materials such as sewage or sludge. Powered entirely by compressed air, the Tianrui sludge vacuum pump can convey solid particles, powders, slurries, high-concentration sludge, oily sludge, mineral slurries, and other bulk materials.

The TR solid vacuum pump is compact, robust, and highly efficient pump. Available in 10m³/h, 20m³/h, 25m³/h, and 40m³/h models, the Tianrui vacuum pump can also be designed as integrated vacuum sludge pump unit. It is commonly used for conveying drilling cuttings and oil sludge. It is also commonly used as pneumatic dredging pump in the mining and river desilting industries. In the tank cleaning industry, it is also used as a self-priming pneumatic tank cleaning pump.

III. Application Scope of Sludge Vacuum Pump

Common applications of solid vacuum pumps:

Coal and other ore slurry vacuum pumps.

Longwall slurry control vacuum pumps.

Sludge thickening tank suction pumps.

Sump, shaft, and pipeline cleaning pumps.

Tank and drain cleaning vacuum pumps.

Petrochemical tank cleaning vacuum pumps.

Tails conveying and dewatering vacuum pumps.

Power plant ash pond cleanup vacuum pumps.

Rapid leak recovery vacuum pumps.

Oil spill capture and transfer vacuum pumps.

Hazardous waste recovery and transfer vacuum pumps

Drill cuttings conveying vacuum pump.

Oil-based mud transfer and pit cleaning vacuum pumps

Vacuum pumps for agricultural products and waste removal.

Dam river desilting, pneumatic desilting vacuum pump.

Vacuum pumps for bentonite, sand, and cement powder transfer.

Wastewater and process waste vacuum pumps.

Vacuum pumps for waste transfer in pulp and paper mills.

Tunnel boring machines and continuous mining slurry vacuum pumps.

Pneumatic excavation vacuum pumps.

Vacuum pumps for cleaning barges, ballast tanks, and ships.

Vacuum pumps for cleaning equipment and underbelt cleaning.

Vacuum pumps for loading and conveying bulk materials.

Vacuum pumps for vacuuming solids.

Pneumatic desilting pumps.

TR vacuum pumps are widely used in thickening sludge, tunnel and TBM, cesspool and shaft cleaning, tailings and ash pond cleaning, biogas tank and pond cleaning, oil spill recovery and transfer, belt spill cleanup, hazardous waste recovery, drilling mud and cuttings conveying, mining slurry conveying and garbage conveying, large-capacity coal slag and coal slime transfer.

TR Solids Control can customize and produce various specifications of sludge vacuum pumps suitable for different industries. For more information, please contact:13186019379.
