How to Choose Best Linear Shale Shaker for Mud System?

In mud treatment operations, Linear Shale Shaker is core component of mud purification system. Renowned for high-efficiency screening and large processing capacity, it is widely used in various mud treatment scenarios. How to select suitable linear shale shaker for mud systems? What key factors should be considered? Combining practical mud treatment demands, TR Solids Control provides professional selection guide to help users achieve precise equipment matching.

Working Principle of Linear Shale Shaker

In mud recycling systems, Linear Shale Shaker utilizes excitation force generated by vibration motors to drive shaker screen to perform high-frequency vibration, enabling materials to move linearly on the screen surface for separation. Equipped with two vibration motors as vibration source, the linear shale shaker facilitates linear forward movement of materials, making it widely adopted type of mud shale shaker. Its screening precision and processing capacity mainly depend on critical parameters such as screen vibration frequency, amplitude, and screen inclination angle. Linear Shale Shaker features high screening efficiency, large throughput, and easy maintenance.

TR Solids Control independently develops diverse range of mud shale shakers, including translational elliptical shale shakers, linear shale shakers, and dual motion shale shakers. All shaker screens adopt wedge block fixing or hook-edge bolt fixing methods, catering to the requirements of different mud treatment scenarios.

Advantages of TR Solids Control Mud Shale Shaker

1. High G-force Excitation Intensity: Flexibly adjustable to meet separation requirements of high-viscosity and high-density mud.

2. High-strength Screen Box Material: Made of high-manganese alloy steel, ensuring superior strength and extended service life of screen box.

3. Integral Heat Treatment Process: The screen box undergoes integral heat treatment, enabling it to withstand long-term operation under high excitation intensity.

4. Convenient Shaker Screen Replacement: Adopts plate frame screen with wedge-type screen compression device for quick and easy screen replacement.

5. Premium Motor Options: Equipped with high-quality vibration motors, with optional Martin or OLI motors available.

6. Brand Electrical Components: Uses well-known brand components from Schneider or Siemens for reliable performance.

7. Inlet Hopper Design: Offers cofferdam-type and top-mounted feed hoppers to buffer and distribute mud evenly, reducing impact on the shaker screen.

8. Low Maintenance Cost: Features fewer wearing parts, simplifying daily operation and maintenance.

Selection Methods for Linear Shale Shaker

1. Consider Work Condition Requirements

   ① Material Characteristics

   Physical and chemical properties of mud are crucial for the screening process. Key factors to focus on include: particle size distribution of solid phases in mud, mud moisture content, mud density, fluidity, and chemical corrosivity. Accurate grasp of mud properties is essential to determine the configuration direction of shale shaker.

   ② Screening Precision

   Screening precision is usually determined by shaker screen aperture size and the number of classification levels. Different drilling conditions such as oil & gas drilling, construction mud treatment, and trenchless mud recycling have varying requirements for solid particle size after mud purification, which directly affects shaker screen selection and shale shaker design.

   ③ Processing Capacity

   Evaluate the required processing capacity based on production scale and material flow rate. Select shale shaker that matches processing capacity to avoid production bottlenecks. Insufficient processing capacity will lead to material accumulation and reduced production efficiency, while excessive capacity will result in resource waste. During selection, calculate the mud processing capacity per unit time and combine it with the screening efficiency coefficient to choose linear shale shaker model with suitable throughput.

2. Select Based on Equipment Performance Parameters

   ① Amplitude and Frequency

   Amplitude and frequency are key parameters affecting screening efficiency. Larger amplitude intensifies material movement on the screen, facilitating rapid screening; frequency influences material stratification speed, which should be adjusted according to material characteristics and screening requirements. For example, materials with large particles and good fluidity allow for appropriately increased amplitude and frequency, while fine-grained and agglomerative materials require higher frequency settings. High-quality mud linear shale shakers (such as TR Solids Control products) feature flexible adjustment of amplitude and frequency to adapt to diverse working conditions.

   ② Shaker Screen Size and Material

   Shaker screen size directly matches screening precision, while screen material should be selected based on material properties and wear resistance For mud containing high proportion of hard particles with strong abrasiveness, high-manganese steel or polyurethane screens are preferred; for corrosive mud, stainless steel screens are the optimal choice.

   ③ Motor Power

   Motor power determines the driving force of linear shale shaker. Higher power delivers stronger excitation force and greater processing capacity, but energy consumption and motor heat dissipation must also be considered. Excessively high power increases energy costs, while insufficient power leads to weak driving force and compromised screening performance.

   ④ Shale Shaker Structure

   Structural stability directly affects the long-term operational reliability of the equipment. Key structural considerations include:Screen box material and manufacturing process (high-manganese alloy steel and integral heat treatment) to ensure resistance to high-frequency vibration. Ease of installation to fit on-site space constraints. Convenience of maintenance for daily inspection and shaker screen replacement.  TR Solids Control's mud linear shale shakers adopt modular structural design with adjustable screen box angles, adapting to different installation scenarios while simplifying maintenance procedures.

   ⑤ Screening Method

   Choose single-layer or multi-layer screening based on process flow and production requirements. Multi-layer screening enables simultaneous classification of multiple particle size levels, improving screening efficiency. TR Solids Control also offers models that can serve as bottom-flow shale shakers for mud desanders and desilters, enhancing equipment versatility.

3. Selection Based on Manufacturer Services

   ① Manufacturer Reputation and Product Quality

   Selecting manufacturers with good reputation ensures reliable product quality and comprehensive after-sales service. TR Solids Control boasts complete R&D and production system, with all products undergoing strict testing to meet industry standards for mud shale shakers.

   ② Technical Support

   Mud treatment scenarios are complex and variable, so it is critical to ensure that manufacturers can provide necessary technical support to resolve issues during installation, commissioning, and operation. TR Solids Control has professional technical team to offer full-range technical support for customers.

   ③ Spare Parts Supply

   Consider whether manufacturers can provide essential spare parts and replacements with timely delivery. Spare parts supply is vital for the long-term stable operation of equipment. Shaker screens and vibration motors of linear shale shakers are wearing parts, requiring guaranteed timely supply.

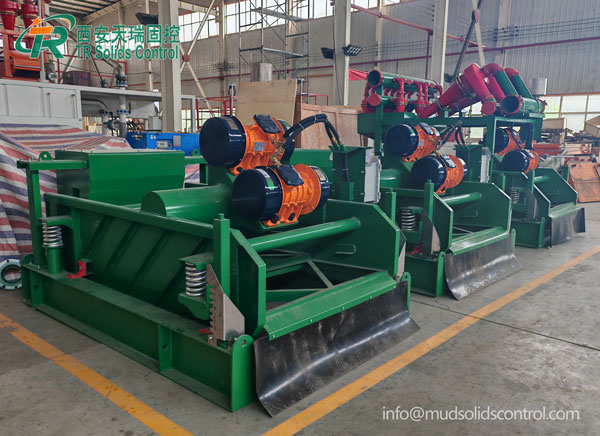

TR Solids Control is professional manufacturer of mud solids control equipment, with complete independent R&D and production system for mud shale shakers. Our linear shale shakers feature high vibration intensity, large screening area, adjustable screen box angle, compact structure, stable performance, and high cost-effectiveness. They are precisely suitable for various scenarios such as oil & gas drilling mud purification systems, construction mud treatment systems, and trenchless mud recycling systems.

In addition to linear shale shakers, TR Solids Control also produces full range of supporting solids control equipment, including desander-desilter combinations, drilling fluid centrifuges, screw pumps, centrifugal sand pumps, jet mud mixers, and mud shear pumps, providing one-stop mud purification system solutions. Our company has professional technical team to offer full-process services from selection research, scheme design, installation and commissioning to after-sales maintenance, with timely spare parts supply to ensure long-term stable operation of equipment.

For more details about linear shale shakers for mud systems or customized solutions, please contact TR Solids Control at +86-29-86332919. We will provide you with professional product information and technical services.
