How to Choose Cost-Effective Shale Shaker Screen?

In oil drilling, shale shaker screen directly affects drilling fluid purification, screening efficiency and equipment service life. There are various types of shaker screens on the market with large price differences, so how to choose high-cost-effective products is the core demand of drilling operators. As a professional solids control equipment manufacturer, TR Solids Control sorts out 5 key methods for selecting shale shaker screens.

I. Material Selection: Balance Between Corrosion Resistance and Wear Resistance

The drilling environment is complex. Drilling fluid contains abrasive substances, and some working conditions involve high temperature and corrosion. The material directly determines the service life and cost of the shaker screen, so it is necessary to select it according to specific conditions.

1. Stainless Steel Material: 304 and 316L are common types, which have excellent corrosion resistance and high-temperature resistance, as well as high mechanical strength, suitable for conventional drilling environments. 316L has better corrosion resistance and is applicable to strong corrosion environments such as coastal areas, but the price is higher; for weak corrosion working conditions, 304 can balance performance and cost.

2. Polyurethane Material: Its wear resistance is 3-5 times that of stainless steel. It has good elasticity and impact resistance, suitable for working conditions with much sand and strong abrasiveness. The disadvantage is weak high-temperature resistance, but it has long service life, is not easy to block, and has stable screening efficiency, resulting in lower comprehensive cost.

3. Composite Material: Metal Frame + Polyurethane Screen Surface: Combining the strength of metal and the wear resistance of polyurethane, it has higher tension and extends the service life by 50%, suitable for high-frequency shale shakers.

II. Process Design: Optimization of Anti-Clogging and Efficiency

Shaker screens of the same material have great differences in craftsmanship. When selecting shaker screens, attention should be paid to details.

1. Weaving Process: Priority should be given to twill or Dutch weaving, which has uniform mesh, stable structure, impact resistance without deformation, and guaranteed screening accuracy. Plain weave has low price but easy mesh deformation and low efficiency, only suitable for coarse screening scenarios.

2. Edge Treatment: High-quality shaker screens adopt folded edge welding or edge wrapping, with flat and burr-free edges and firm welding. They fit the screen frame perfectly during installation, avoiding liquid leakage and deviation; inferior shaker screens have rough edges without reinforcement, which are easy to loosen and have potential safety hazards.

3. Surface Treatment: For corrosive working conditions, products with galvanized, plastic-sprayed or passivated surfaces should be selected. It is necessary to check whether the treatment is uniform to avoid missing plating and peeling which may shorten the service life.

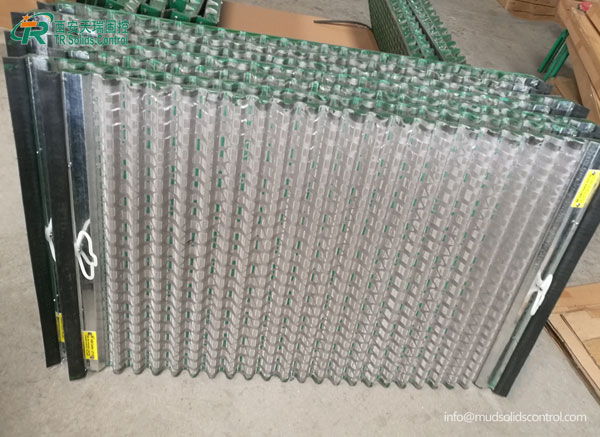

For example, the wave-shaped shale shaker screen of TR Solids Control has filtering area 25%-50% larger than that of flat-plate shaker screens, and the processing capacity is increased by 30%-40%, suitable for high-flow drilling fluid; the bonding process is resistant to vibration and impact, extending the service life; the grid design has good anti-clogging performance, forming the optimal mud flow path, reducing particle clogging and improving screening accuracy.

III. Compatibility: Precise Matching of Equipment and Working Conditions

Incompatibility between the shaker screen and equipment or working conditions will cause waste, so attention should be paid to compatibility points.

1. Equipment Model Compatibility: Clarify the parameters of the equipment such as shaker screen size, aperture and installation buckles to ensure precise installation. Priority should be given to original accessories or general shaker screens marked with compatible models.

2. Working Condition Demand Compatibility: Select parameters according to drilling depth, drilling fluid type and sand size. For deep drilling, choose materials with high temperature and corrosion resistance; for shallow coarse screening, choose large-aperture shaker screens; for high-precision purification, choose small-aperture shaker screens.

TR Solids Control can customize shaker screens for different working conditions, and also produce shaker screens replaceable with Derrick, SWACO and BRANDT series compatible models.

IV. Parameters and Performance: Quantitative Screening Standards

Shaker screen parameters directly affect the use effect and drilling cost.

1. Aperture and Mesh Count: Determine the screening accuracy. The mesh count is related to accuracy and efficiency, so it should be selected according to needs, avoiding blind pursuit of high or low mesh count.

2. Tension: A balanced tension system ensures the shaker screen works stably under vibration frequency, avoiding slurry jumping or screen pasting.

3. Service Life: A key indicator of cost-effectiveness. Under the same working conditions, the longer service life, the lower the comprehensive cost. It is necessary to compare the "unit price/service life" ratio to select better products.

4. Screening Efficiency: Determines the operation progress. Priority should be given to high-efficiency and non-clogging products to ensure stable drilling operation efficiency.

5. Processing Capacity: The processing capacity of the wave-shaped shaker screen reaches 80m³/h, which is 40% higher than that of the flat-plate shaker screen, suitable for high-yield wells.

V. Brand and After-Sales Service: Guarantee of Long-Term Cost

When selecting, it is necessary to balance price and brand reputation to reduce procurement risks.

1. Professional Manufacturers: Priority should be given to brands with more than 15 years of manufacturing experience (such as TR Solids Control). Their products have mature craftsmanship, stable quality and perfect after-sales service, which can reduce downtime losses.

2. Certification Standards: Pass ISO9001 and API quality management system certification to ensure strict inspection of each process and reduce defective rate.

3. Rapid Response: Provide technical support within 24 hours and cooperate with customers to solve problems on site, reducing downtime losses.

4. Value-Added Services: Free technical consultation, equipment compatibility testing, shaker screen life prediction, etc., to help optimize procurement plans.

When choosing high-cost-effective shale shaker screen, priority should be given to material corrosion resistance, process anti-clogging design, equipment compatibility and brand after-sales guarantee, rather than simply pursuing low prices. As professional shale shaker screen manufacturer, TR Solids Control can customize suitable shaker screen solutions according to customer needs and working conditions. High-cost-effective shaker screens can significantly reduce the comprehensive drilling cost and improve operation efficiency.
