Balanced Elliptical Shale Shaker for Selection and Maintain

High-Quality BEM Shale Shaker Suppliers: Top Producers & Manufacturers

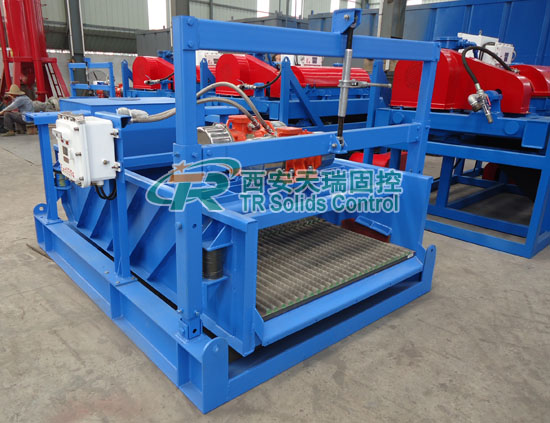

Balanced Elliptical Shale Shaker is highly efficient tool for removing solid particles from drilling fluids. Manufactured with durable materials and advanced technology, it ensures long-term performance and reliability. This shale shaker is easy to operate and maintain.

The most commonly used shale shaker is the linear motion shale shaker. The design difficulty of the balanced elliptical motion shale shaker is higher than that of the linear motion shale shaker, but TR Solid Control Company has designed new type of balanced elliptical motion shale shaker.

Balanced Elliptical Shale Shaker can increase the processing capacity by 30% and the speed of conveying sand and removing waste by 20%. In addition, it can effectively prevent screen clogging and slag buildup.

By employing an elliptical vibration trajectory, the movement of materials on the screen surface becomes more complex, which is beneficial for improving screening efficiency.

1. High processing capacity: The horizontally moving elliptical shale shaker has a large screening area and high vibration intensity, enabling it to process drilling fluids with high specific gravity and high viscosity. It also results in higher drill cuttings dryness.

2. Not prone to clogging: Due to the high-frequency vibration of the material on the screen surface, clogging of the screen surface can be effectively prevented, resulting in a longer service life of the screen.

3. Easy maintenance: quick tensioning system for convenient screen replacement; screens are available in two types: flat screen and pyramid screen; -1° to +5° screen frame angle adjustment device.

4. Energy-saving and environmentally friendly: The equipment operates stably with low energy consumption, meeting the requirements for energy conservation and environmental protection.

Features of TR shale shaker

1、High-G force vibration intensity (adjustable) can separate high-viscosity, high-density mud.

2、The screen box is made of high manganese alloy steel, which has high strength and long service life.

3、The screen box undergoes overall heat treatment, enabling it to operate for extended periods under high vibration intensity.

4、Plate frame mesh with wedge-type screen clamping device for easy screen disassembly in a short time;

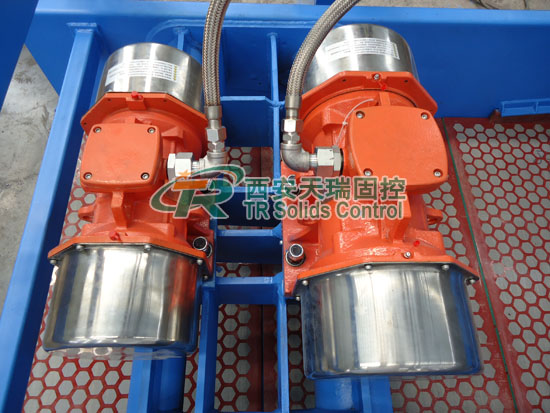

5、Use MARTIN motor or an OLI motor;

6、Electrical components should be selected from Schneider or Siemens;

7、The mud inlet funnel is selected from the cofferdam type and the top-mounted type to buffer and evenly distribute the mud, reducing the impact on the screen.

8、It has few vulnerable parts and is easy to operate and maintain.

When selecting a shale shaker, the following key technical parameters should be considered comprehensively:

Processing capacity: It must be matched with the maximum displacement of the drilling pump, with an appropriate margin to ensure effective processing even at high flow rates.

Screening efficiency: This depends on the vibration intensity (G-force), screen area, and motion trajectory. High G-force shale shakers can separate fine particles more effectively, but attention should be paid to the wear and tear on the screen and equipment.

Screen configuration: The mesh size and number of layers of the screen directly affect the separation effect. Composite multilayer screens can achieve screening at different precision levels, thereby improving overall efficiency.

Power system: The performance and reliability of the vibrator are key to the long-term stable operation of the equipment.

Routine use and maintenance

Proper operation and maintenance are crucial for extending the service life of shale shakers and ensuring screening efficiency. During daily operation, it is essential to ensure even feed distribution and avoid uneven flow that could cause premature damage to the screen mesh.

Regularly check the tension of the screen, promptly remove any blockages, and keep the screen holes clear.

Pay attention to the bearing temperature and lubrication of the vibrator, and listen to whether the operating sound is normal.

Ensure uniform feeding, regularly inspect and maintain the screen and vibrator, and keep the equipment running stably, thereby extending its service life.
