High-Efficiency Mud Cleaner Shipped to Indonesian Drilling

Recently, the TRQJ250×3S-100×20N mud cleaner, customized for an Indonesian customer by TR Solids Control, was officially shipped to Southeast Asia after completing the entire production, commissioning, and testing process, injecting strong momentum into local drilling operations. As an integrated combination of drilling fluid shale shaker and mud cleaner, with its customized high-efficiency performance, further solidifies TR Solids Control's competitive advantage in the Southeast Asian solids control equipment market.

Precise Adaptation to Working Conditions, Efficiently Solving Mud Treatment Challenges

The mud cleaners shipped to Indonesia are core equipment for mud treatment in drilling operations. Aiming at the complex and changeable drilling conditions in local Indonesia, TR Solids Control has developed the TRQJ250×3S-100×20N mud cleaner, which is equipped with 3 sets of 10-inch desanding hydrocyclones and 20 sets of 4-inch desilting hydrocyclones. This equipment enables rapid classification and separation of solid particles with different particle sizes in the drilling fluid. Cooperated with dedicated underflow shale shaker, it achieves strong functional integration while maintaining a compact volume.It not only ensures the continuous and stable operation of drilling work, but also significantly reduces operating costs for customers by optimizing the efficiency of mud recycling.

TR's solids control mud cleaner boasts "small size, big power." Despite its compact size, it is highly functional, achieving efficient screening within limited space and effectively ensuring continuous and stable drilling operations. This innovative design not only reduces the equipment's footprint but also saves drilling companies valuable operating time and costs, earning high praise from customers.

Superior Performance Parameters Demonstrate Professional Quality

TRQJ250×3S - 100×20N Mud Cleaner Parameters：

1. Desander Cyclones：10" × 3 units. These hydrocyclones efficiently separate larger solid particles, reducing sand content in the mud.

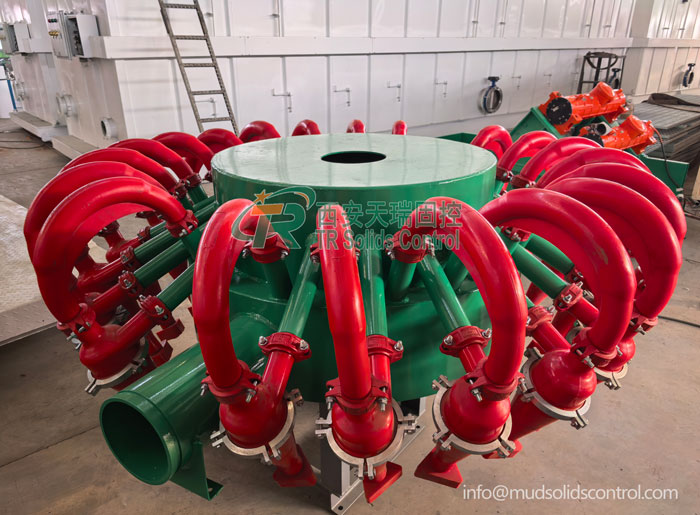

2. Desilting Cyclone：4" × 20 units. Precisely separate fine-particle solids to further improve mud purity.

3. Vibration performance: Vibration intensity ≥7G, providing strong power for screening process, greatly improving screening efficiency, effectively preventing screen blockage, and ensuring long-term stable operation of the equipment.

4. Underflow Shaker: The FLC2003 model is adopted, equipped with two 1.65kW motors. It delivers ample power and stable operation, suitable for high-intensity working conditions.

5. Screen parameters：Size 1050×695mm×3 panels, 220-mesh, with single-layer wave screen, balancing screening precision and processing capacity.

6. Explosion-Proof Rating: Complies with EdIIBT4 standard, adapts to various complex and hazardous working conditions, and safeguards the safety of operators and stable equipment operation.

7. Electrica：380V 50Hz, compliant with international power supply standards, eliminating the need for additional voltage transformation equipment.

Compared with traditional single shale shaker equipment, the TRQJ250×3S-100×20N mud cleaner has achieved an upgrade in deep purification. Integrating the functions of desander and desilter into one, this device relies on cyclone separation technology. Through the high-speed centrifugal force field inside the hydrocyclones, it accurately captures and removes small-sized sand particles, muddy grains and impurities in the drilling fluid, significantly improving mud cleanliness and effectively ensuring stable mud performance. This in turn boosts the efficiency of workover operations and provides strong support for the advancement of drilling projects.
