Hook Strip Soft Screen

Hook Strip Soft Screen / Soft Hooked Shaker Screen is consumable accessory for shale shakers and desander/desilter cleaners used in oil drilling. Different from rigid hook strip screens with metal support plates, it is widely applied in oilfield solid control systems.

Structure & Material

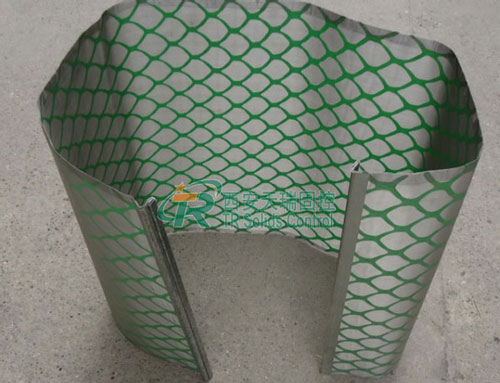

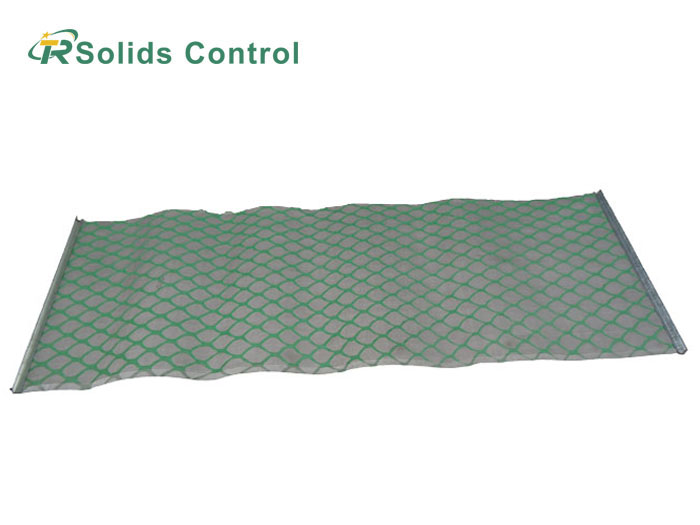

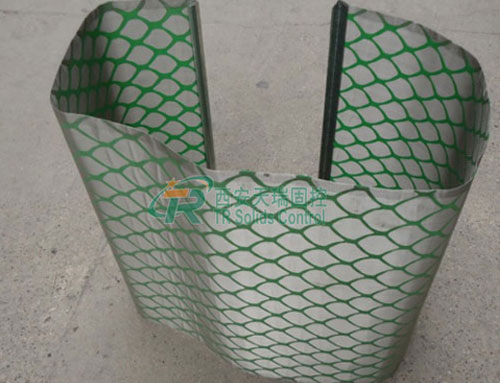

Core Structure: Usually composed of 2–3 layers of stainless steel wire cloth (304/316 grade) bonded together, without rigid metal support plates. Flexible hook strips on both sides allow fast tensioning and installation. The screen surface is mostly flat.

Technology: Layers are bonded with oil-resistant and high-temperature-resistant resin. Edges are wrapped with wear-resistant rubber or polyester hook strips, suitable for pull-type or snap-type screen frames.

Mesh Range: Commonly 20–150 mesh, higher precision can be customized.

Performance Features

1. Larger effective filtration area (no obstruction from support plates) and high processing capacity.

2. Lighter weight and lower cost, reducing procurement and transportation expenses.

3. Easier and faster installation and replacement, operable by a single worker.

4. Suitable for drilling fluids with medium-low solid content.

Applicable Equipment & Scenarios

Compatible Models: Mainstream oilfield shale shakers and cleaners such as Brandt, Derrick, etc. Often used as standard configuration or cost-effective alternative.

Typical Applications: Primary/secondary solid control in onshore/offshore oil & gas drilling, shale gas development, horizontal directional drilling (HDD), and shield mud treatment, used to separate drill cuttings of 20–150μm.

Selection & Application Tips

Mesh Matching: Selected based on drilling fluid viscosity, solid content, and well depth. Coarse screens (20–60 mesh) for shallow wells, fine screens (80–150 mesh) for deep wells. Multi-layer screens realize graded filtration.

Material: 316 stainless steel is preferred in sour gas/high chloride ion environments.

Installation: Even tension to avoid local slackness and screen tearing. Do not use damaged screens to prevent solid phase penetration and contamination of the circulation system.

Maintenance: Rinse with clean water during operation intervals to avoid mud caking. Inspect and replace regularly in accordance with API RP 13C.

Soft hook strip shaker screens manufactured by TR Solids Control can serve as cost-effective alternatives to original screens from Derrick, NOV Brandt, etc.

Please confirm full compatibility of screen size, hook strip specification, mesh count and layers with the equipment.

Bulk stock is recommended, especially in remote well sites.

Flexible matching between soft and rigid hook strip screens is suggested according to working conditions.
