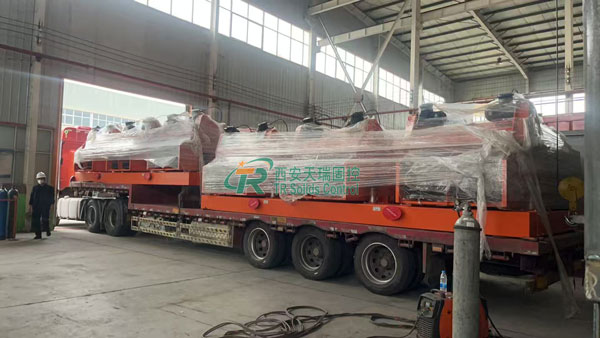

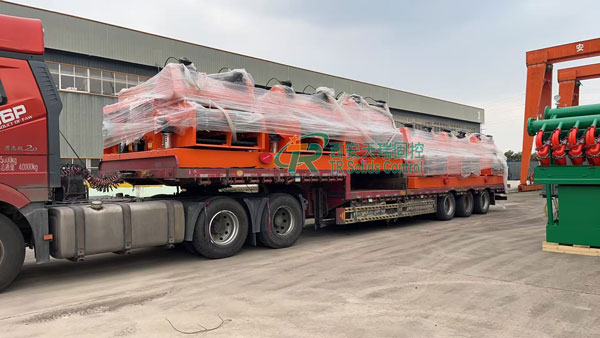

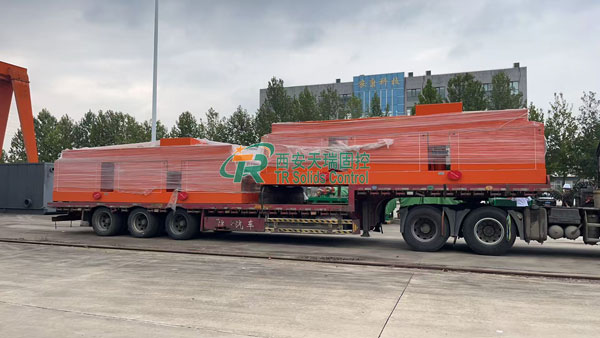

A batch of Shale Shaker for drilling platforms were successfully delivered

A significant milestone has been achieved as a batch of high-quality vibrating screens, specifically designed for drilling platforms, has been successfully shipped to its destination. These vibrating screens play a crucial role in the drilling process, effectively separating solids from drilling fluids to ensure smooth and efficient operations.

Drilling fluid vibrating screens operate on the principle of vibration-based material separation. The core mechanism involves a vibrating motor generating excitation forces, which drive the screen bed to perform linear, circular, elliptical, or flat elliptical motions. This high-frequency vibration causes drilling fluid and cuttings to move rapidly across the screen surface. The screen mesh, typically made of stainless steel woven wire or polyurethane, allows fine particles (e.g., drill cuttings smaller than 74 microns) to pass through while retaining larger solids. The separated clean mud flows into the vibrating screen tank for further processing, while the larger solid particles are discharged from the screen bed via the excitation force. This process ensures efficient initial separation of solids from the drilling fluid, maintaining fluid quality and system performance.

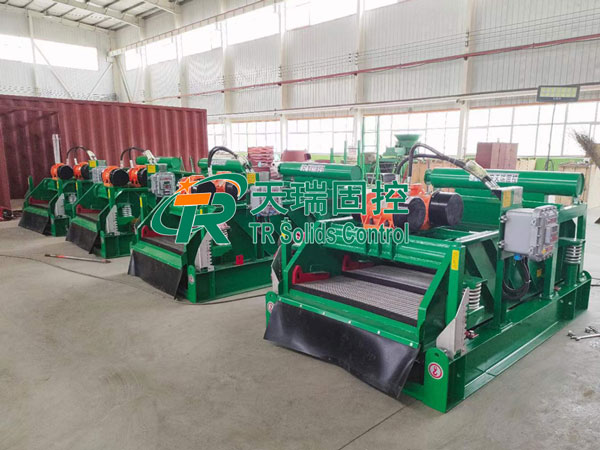

Advantages of TR Shale Shaker

1.  High Vibration Intensity and Adjustable Screen Box Angle: The high vibration intensity enhances material movement on the screen surface, improving separation efficiency. The adjustable screen box angle (typically ranging from -1° to 5°) allows operators to optimize screening performance based on drilling conditions.

2. Large Screening Area and Compact Structure: Drilling fluid vibrating screens feature a large screening area, enabling high-capacity processing. Their compact design minimizes space requirements on drilling platforms, making them suitable for confined environments.

3. Durable Construction and Long Service Life: Built with robust materials such as stainless steel or polyurethane, these screens withstand abrasive drilling conditions and resist wear, reducing downtime and maintenance costs.

4. High Filtration Efficiency: The screens effectively remove solids larger than 74 microns, preventing their re-entry into the drilling fluid system. This enhances drilling fluid performance and minimizes equipment wear downstream.

5. Self-Cleaning Mechanism: Innovative designs, such as anti-blinding features, prevent screen mesh clogging. This ensures consistent fluid flow and reduces operational disruptions.

6. Energy Efficiency: By utilizing resonance principles, some models achieve larger amplitudes with smaller excitation forces, reducing energy consumption while maintaining high processing capacity.

Applications of TR Shale Shaker

1. Oil and Gas Drilling: Drilling fluid vibrating screens are the "first line of defense" in solid control systems. They separate drill cuttings from drilling fluid, ensuring efficient mud circulation and protecting downstream equipment like mud cleaners and centrifuges.

2. Geothermal Drilling: In geothermal projects, these screens maintain drilling fluid quality by removing solids, which is critical for drilling efficiency and wellbore stability.

3. Trenchless Engineering: For horizontal directional drilling (HDD), vibrating screens filter out cuttings from the drilling fluid, enabling smooth operations in urban or environmentally sensitive areas.

4. Coalbed Methane and Shale Gas Drilling: These screens handle high-volume drilling fluids in unconventional resource extraction, ensuring cost-effective and environmentally friendly operations.

5. River Sludge Environmental Protection: In dredging and environmental projects, vibrating screens separate solids from sludge, facilitating water recycling and reducing waste disposal costs.

6. Mineral Processing and Coal Screening: Beyond drilling, these screens are used for fine-grained material screening in tailings processing and coal depth screening, showcasing their versatility.






Drilling fluid vibrating screens are indispensable in drilling operations, combining high efficiency, durability, and adaptability. Their ability to separate solids from drilling fluid ensures optimal fluid performance, reduces equipment wear, and supports sustainable drilling practices. Widely used in oil and gas, geothermal, trenchless engineering, and environmental projects, these screens exemplify innovation in solid control technology.

The successful shipment of this batch of vibrating screens underscores our commitment to delivering reliable and top-notch equipment to our clients in the oil and gas industry. We take pride in our ability to meet the unique needs of drilling platforms, providing solutions that enhance operational efficiency and safety.
