What's the difference between drilling shale shaker and ordinary shale shaker?

2025-12-04

Drilling shale shakers are the first-stage solids control equipment in oil drilling fluid solids control systems. Their function is to separate drill cuttings (rock cuttings) and harmful solid phases from drilling fluid (mud), recover valuable liquid phases (drilling fluid), and ensure the stability and recycling of drilling fluid performance.

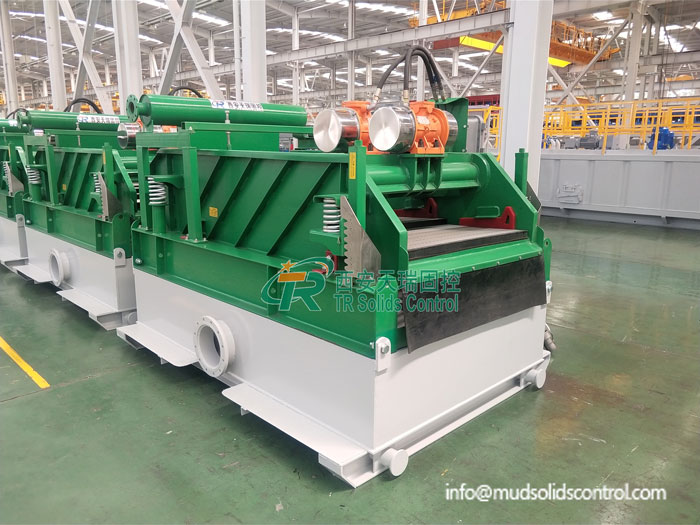

Drilling Shale Shaker - Mud Shale Shaker - Oil and Gas Solids Control Equipment Manufacturer

While both fall under the category of vibrating screening equipment, drilling shakers are specialized for oil drilling solids control systems, whereas general-purpose shakers are widely used in industries like mining, chemical processing, and food production. Due to differences in application scenarios, material properties, and operational requirements, the two have fundamental distinctions in design, performance, and structure. Below is a table comparing their key differences:

Comparison Parameters	Drilling shale shaker	Ordinary Shakers/General-Purpose Shakers
Application Scenarios	Oil/Gas drilling sites: Primary solids control for drilling fluid (mud), separates cuttings, sand and other solids, enabling fluid recycling.	General-purpose scenarios (mining, chemical, food, building materials screening): Separates common solid materials (e.g., ore, powder, granular raw materials).
Processed Materials	Processes high-viscosity, high-solid-content drilling fluid with corrosive chemical additives, featuring strong fluidity, high adhesion, and high hardness of solid particles (cuttings).	Processes dry or low-viscosity solid particles/powders, with low adhesion, low corrosivity, and relatively low hardness of solid phases.
Design Goals	Prioritizes high-efficiency solid removal rate and drilling fluid recovery rate, while adapting to the harsh drilling site environment and supporting 24/7 high-intensity operation without disrupting drilling progress.	Prioritizes either classification accuracy or screening output, with lower operational intensity and less stringent requirements for continuous operation duration than drilling scenarios.
Vibration Technology	Features high-frequency, large-amplitude, multi-angle adjustable vibration design (Tianrui’s products boast vibration frequency of 3000+ RPM). Via linear or composite vibration modes, it quickly overcomes drilling fluid adhesion to achieve high-efficiency separation of cuttings and drilling fluid.	Vibration frequency and amplitude are relatively fixed, mostly featuring single vibration mode (e.g., circular or linear vibration). Its parameter design is adapted to the screening needs of general-purpose materials.
Structure and Materials	1. The screen box adopts thickened steel plate welding + corrosion-resistant coating, featuring impact resistance and vibration fatigue resistance. 2. The screen is special wear-resistant polyurethane screen or stainless steel wedge wire screen with precise aperture sizes (customizable 0.1-5mm), offering clog resistance and drilling fluid corrosion resistance. 3. Equipped with heavy-duty shock absorption devices and sealed protection design, it prevents drilling fluid leakage and protects internal motors and transmission systems. 4. The motor features explosion-proof design (compliant with API standards) to adapt to the flammable and explosive environment of drilling sites.	1. Screen box mostly made of ordinary steel plate with lower protection level. 2. Screen is usually ordinary wire mesh or polyurethane mesh, with wide aperture range (1mm-50mm) and average wear/corrosion resistance. 3. No explosion-proof design, simple sealing performance, only meeting basic dust and leakage prevention needs.
Resistance to harsh environments	Adapts to drilling site's harsh conditions (high temperature, high humidity, heavy dust, frequent movement with rig relocation), with IP54+ overall protection rating, resisting vibration, impact, and chemical corrosion.	Adapts to indoor or general outdoor environments, with low tolerance to high temperature, corrosion, vibration and impact, low relocation frequency, and protection rating around IP44.
Safety and compliance requirements	Complies with oil and gas industry API standards, explosion-proof standards (e.g., ATEX certification) and drilling site specifications; electrical systems, sealing design, and environmental emissions (preventing drilling fluid leakage pollution) meet oilfield-specific requirements.	Complies with general industrial equipment standards, no industry-specific compliance requirements; environmental requirements only cover general dust control.
Maintenance and Adaptability	Supports quick screen replacement (Tianrui’s quick-release screen fixing structure), wear parts (e.g., vibration motors, shock springs) with high versatility, customizable for water-based, oil-based, synthetic-based drilling fluids.	Screen replacement process relatively complex, wear part compatibility limited to general-purpose scenarios, poor adaptability to high-viscosity, corrosive materials.

Designed for oil, natural gas, coalbed methane, and other drilling operations, the solids control drilling shaker separates large solid cuttings from drilling fluid, prevents solid accumulation and clogging, and enhances drilling fluid performance. The key difference from general-purpose shakers lies in the special properties of drilling fluid and the stringent requirements of drilling sites. Through targeted technical designs and material upgrades, TR Solids Control’s drilling shaker addresses the shortcomings of ordinary shakers in handling high-viscosity drilling fluid, adapting to harsh environments, and supporting continuous high-intensity operations. As a critical equipment to ensure drilling efficiency and reduce drilling costs, it meets the customized needs of various drilling conditions.
