What are the advantages of TR decanter centrifuge?

2025-09-08

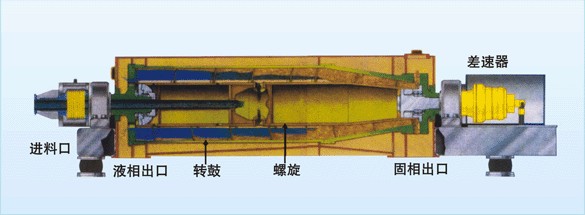

Decanter Centrifuge is a device that uses centrifugal force to achieve solid-liquid separation. Its core working principle is to separate solids and liquids of different densities into layers in the drum through the centrifugal field generated by high-speed rotation, and discharge them continuously through the screw conveyor to achieve automatic separation.

Model	TRLW600B-1	TRLW450N-1	TRLW450N-2	TRLW355N-1	TRLW355NB-1
Bowl Diameter	600mm	450mm	450mm	355mm	355mm
Bowl Length	1500mm	1000mm	1250mm	1250mm	1250mm
Bowl Speed	2200r/min	2200r/min	3200r/min	3200r/min	0~3200r/min
Capacity	90m³/h	50m³/h	50m³/h	40m³/h	40m³/h
G-Force	1623	1217	2035	2035	0~2035
Separation paint	5~7μm	5~7μm	2~5μm	2~5μm	2~7μm
Gear Box Speed	40r/min	40r/min	30r/min	30r/min	0~30r/min
Gear Box Ratio	35:1		57:1
Main Mator Power	55kw	30kw	37kw	30kw	37kw
Auxiliary Motor Power	15kw	7.5kw	7.5kw	7.5kw	7.5kw
EX Standard	ExdIIBt4 / IECEX / A-TEX
Weight	4800kg	2700kg	3200kg	2900kg	3200kg
Dimension	2900x1900 x1750mm	2600x1860 x1750mm	2600x1860 x1750mm	2600x1620 x1750mm	2600x1620 x1750mm

Features and Benefits

1. The straight section and cone section of the drum are made of 2205 duplex stainless steel using centrifugal casting process.

2. The rest of the components of the transfer assembly are made of SS316L stainless steel.

3. The spiral pusher is protected by YG6 wear-resistant alloy sheet, which has a long service life and is easy to repair and replace.

4. The diversion port of the spiral pusher and the slag discharge port of the drum are protected by easily replaceable wear-resistant alloy sleeves, which prolongs the service life and maintenance cycle.

5. The drum assembly is protected by a detachable support frame during transportation to prevent damage to the bearings during transportation.

6. Use original imported SKF bearings and NSK bearings to improve equipment stability and bearing service life.

7. Use variable frequency control to facilitate customers to adjust the speed at any time to meet different working conditions.

8. Electrical components are from Schneider or Siemens, with dual protection of current overload protection and mechanical limit switch.

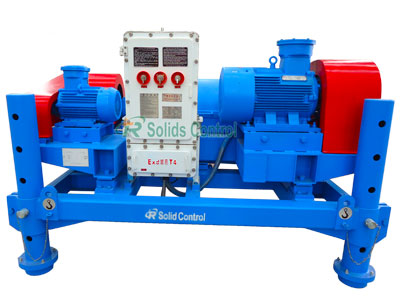

TR centrifuge Centrifuges in the TR factory Centrifuges of TR factory

As the main equipment in the field of solid-liquid separation, TR Solids Control's decanter centrifuge has become an indispensable technical equipment in industries such as sewage treatment, oilfield development, food manufacturing, chemical and pharmaceutical industries due to its high efficiency, stability and environmental protection.With the continuous innovation of separation technology and the continuous upgrading of material processes, the decanter centrifuge will continue to expand its application boundaries and provide strong support for more industries to achieve efficient resource utilization and clean production.
