What are types of mud shale shakers?

Mud shale shaker is primary solids control equipment in oil drilling solids control system,used to separate solid particles (such as drill cuttings) from the drilling fluid, ensuring the drilling fluid remains clean and reusable for recirculation.

Generally, shale shakers are classified by their motion trajectories, a naming convention derived from their operating principles. With technological advancements, modern shale shakers can also be categorized by the number of screen layers—including single-layer, double-layer, and multi-layer models. These designs enable simultaneous separation of products with different particle sizes, enhancing screening efficiency and allowing customization to meet diverse operating condition requirements.

In drilling operations, multiple shale shakers can also be connected in parallel. Classified by their structural configuration, they include single-unit and double-unit (tandem) shale shakers, where multiple screen boxes are connected side by side. This setup doubles processing capacity, saves space, and is ideal for large drilling rigs or high-throughput requirements.

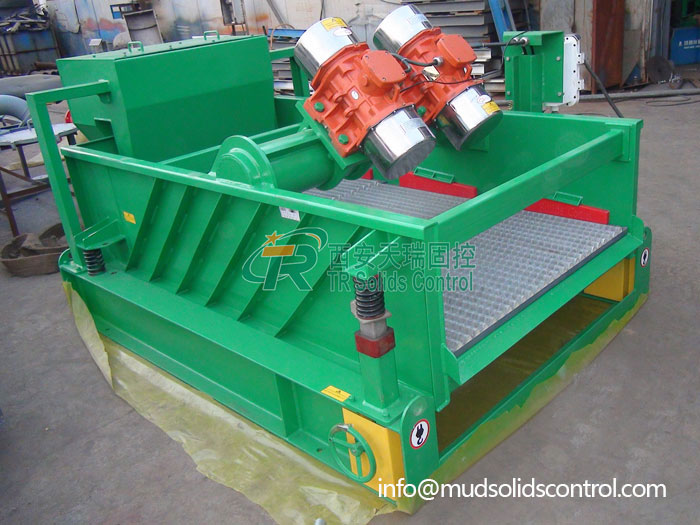

Types of Mud Shale Shaker

1. Linear Shale Shaker

   Core Principle：Driven by dual motors with synchronous operation, generating linear vibration via eccentric blocks. The vibration trajectory is a straight line, ensuring uniform material distribution across the screen and efficient solid-liquid separation.

   Advantages：High screening precision, small installation inclination angle (0°-10°), low equipment height, anti-clogging performance, and suitability for dewatering and desliming applications.

   Applications：Mainstream type in oilfield solids control systems, specifically designed for high-flow drilling operations with large processing capacity.

2. Circular Motion Shale Shaker

   Core Principle：Single-motor drive with an eccentric shaft, producing circular vibration. Materials move in a spiral path on the screen, extending contact time with the mesh.

   Advantages：Excellent screening efficiency for fine particles, simple structure, and easy maintenance. Suitable for scenarios with strict requirements on solid separation precision.

   Disadvantages：Large installation inclination angle (15°-25°), relatively high equipment height, and potential additional breakage of fragile materials.

   Applications：Suitable for classifying coarse and medium-grained materials, and rarely used for drilling mud treatment.

3. Balanced Elliptical Motion Shale Shaker

   Core Principle：Integrates linear and circular motion characteristics, adjustable vibration trajectory (elliptical shape). Combines high processing speed (linear motion advantage) and fine screening precision (circular motion advantage).

   Advantages：Smoother vibration, high solid-phase conveying efficiency, excellent fluid recovery performance, and reduced screen wear.

   Applications：Specifically designed for deep well drilling and high-difficulty drilling operations.

4. Dual Motion Shale Shaker

   Core Principle：Typically equipped with three vibration motors. By adjusting the phase angles and rotational speeds, the screen box achieves both linear and elliptical motion trajectories simultaneously.

   Applications：Used in Special Operating Conditions,It provides more complex material movement patterns to enhance separation efficiency.

Special Types of Mud Shale Shaker

1. Vacuum Shale Shaker

   Features：Integrates vacuum suction functionality with vibration, significantly enhancing solid-liquid separation efficiency.

   Applications：Recovers drilling fluid, reduces waste generation, and is specifically suited for high-cost drilling fluid systems.

2. Drying Shaker

   Core Principle：Equipped with fine-mesh screens and high-frequency vibration systems, focusing on liquid recovery from drill cuttings and reducing liquid/oil content.

   Advantages：Lowers cuttings' liquid content to ~10%, minimizes waste discharge, and recycles valuable drilling mud.

   Applications：Oil-based drilling fluid systems, Specifically designed for sludge drying, it further reduces the moisture content of solid phases. It fulfills the environmental requirement of the "Drilling Mud Zero-Discharge" process.

Mud shale shakers are available in a wide range of types. When selecting one, factors such as drilling fluid properties, processing capacity, site conditions, and environmental requirements must be considered. Linear motion shale shakers and balanced elliptical motion shale shakers are currently the mainstream choices in the oil drilling industry. Multi-layer and dual-unit (tandem) designs can enhance processing efficiency within limited space. For special operating conditions, specialized types such as vacuum shale shakers or dry shale shakers may be considered.
