Integrated solution for TR oilfield drilling solids control equipment

The Integrated Solid Control Equipment Solution for oilfield drilling is a comprehensive system designed to optimize drilling fluid management by combining multiple solid-liquid separation technologies into a unified, efficient workflow. This solution enhances drilling performance, reduces operational costs, and ensures environmental compliance by maintaining clean, stable drilling mud throughout the drilling process.

1. Core Components of the Integrated Solution

The system integrates the following key equipment to achieve seamless solid-liquid separation:

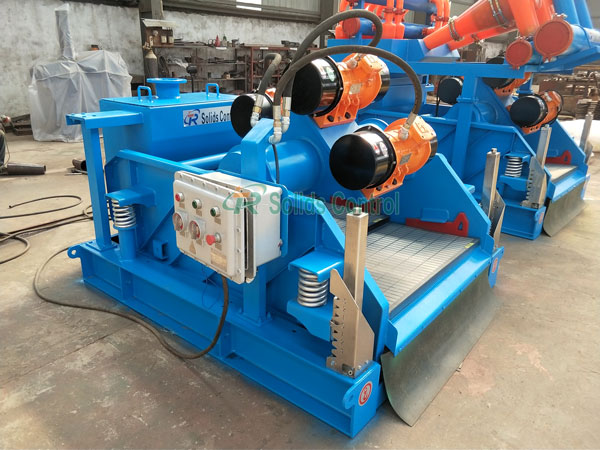

Primary Separation: Vibrating Screen (Shale Shaker)

Removes large cuttings (>74 μm) through high-frequency vibration, protecting downstream equipment from blockage.

Features multi-layer screens for adjustable particle size control.

Secondary Separation: Hydrocyclones (Desander & Desilter)

Desander: Removes sand-sized particles (40–74 μm) using centrifugal force.

Desilter: Eliminates finer silt particles (15–40 μm) for cleaner mud.

Tertiary Separation: Decanter Centrifuge

Separates ultra-fine solids (<15 μm) and colloidal particles through high-speed rotation, producing low-solids mud for reuse.

Adjustable differential speed for customized separation efficiency.

Mud Conditioning: Degasser & Mixing System

Vacuum Degasser: Removes entrained gases (e.g., methane, CO₂) to prevent wellbore instability.

Jet Mixer: Homogenizes drilling mud by blending chemicals and additives for consistent properties.

Fluid Recovery: Mud Tank & Pump System

Multi-compartment tanks store clean and contaminated mud, enabling closed-loop circulation.

Centrifugal pumps transfer mud between equipment with minimal pressure loss.

2. Key Advantages of the Integrated Solution

① Enhanced Drilling Efficiency

Reduced Non-Productive Time (NPT): Continuous mud cleaning prevents bit balling, stuck pipe, and wellbore collapse.

Optimized Mud Properties: Stable density, viscosity, and lubricity improve drilling speed and tool life.

② Cost Savings

Mud Recycling: Up to 95% of drilling fluid is reused, cutting fresh mud consumption by 40–60%.

Lower Disposal Costs: Reduced waste volume minimizes transportation and treatment expenses.

③ Environmental Compliance

Zero-Discharge Design: Closed-loop systems prevent hazardous mud spills, meeting global environmental standards (e.g., OSPAR, EPA).

Solids Control Waste Management: Dried cuttings can be safely disposed of or repurposed (e.g., road construction).

④ Automation & Smart Control

SCADA Integration: Real-time monitoring of pressure, flow rate, and solids content via sensors and PLCs.

Remote Operation: Adjust equipment parameters (e.g., centrifuge speed) from the control room for safety and efficiency.

3. Application Scenarios

① Onshore & Offshore Drilling

Onshore: Adaptable to harsh environments (e.g., deserts, Arctic regions) with robust, dust-proof designs.

Offshore: Compact, modular units fit on drilling platforms with limited space.

② Deepwater & Ultra-Deepwater Drilling

High-pressure-resistant centrifuges and degassers handle complex mud systems in deep wells.

③ Horizontal Directional Drilling (HDD)

Maintains low-friction mud for smooth pipe installation in urban utility projects.

4. Case Study: Successful Implementation

Project: A Middle Eastern oilfield faced high mud costs and frequent bit failures due to poor solids control.

Solution: Deployed an integrated system with:

A 4-panel vibrating screen for primary separation.

Dual 10-inch desanders and 12-inch desilters for secondary cleaning.

A high-G decanter centrifuge for tertiary separation.

Results:

Mud reuse rate increased from 65% to 92%.

Drilling speed improved by 25%, reducing overall project time by 18 days.

Waste disposal costs dropped by 55%.

The Integrated Solid Control Equipment Solution revolutionizes oilfield drilling by combining cutting-edge technology with cost-effective, eco-friendly practices. By ensuring clean, stable drilling mud, it enhances safety, productivity, and sustainability across global energy projects.
