Mud Desilters: How to Remove Fine Solids to Optimize Drilling Fluids?

In oilfield drilling operations, the accumulation of fine solids (typically with particle sizes ranging from 15 to 74 microns) in drilling fluid (mud) poses significant risks—such as increased mud viscosity, reduced drilling rate, accelerated wear of downhole tools, and potential wellbore instability. As a critical secondary stage in the mud solid control system (following shale shakers and desanders), the mud desilter is specifically designed to efficiently separate these fine solids, thereby maintaining optimal mud properties and ensuring smooth drilling progress.

1. Core Function and Principle

A mud desilter is a critical component in drilling fluid solid control systems, primarily designed to remove fine solid particles (typically 20–74 μm) from drilling mud. It operates as a tertiary solid control device, following desanders (which remove larger particles, 47–76 μm) and preceding centrifuges or fine screens.

The desilter uses hydrocyclones (conical separators) to generate centrifugal force. When drilling fluid enters the hydrocyclone under pressure, the swirling motion separates solids from the liquid phase. Heavier solids are forced outward to the inner wall of the cyclone and discharged through the underflow outlet, while the cleaner fluid rises through the vortex finder and returns to the drilling mud circulation system.

2. Key Advantages in Fine Solid Removal

High Efficiency for Fine Particles:

Hydrocyclones in desilters are optimized to capture particles as small as 20 μm, which traditional shaker screens (even with fine mesh) struggle to retain. This ensures that silt-sized solids, which can degrade mud properties (e.g., viscosity, gel strength), are effectively removed.

Compact and Modular Design:

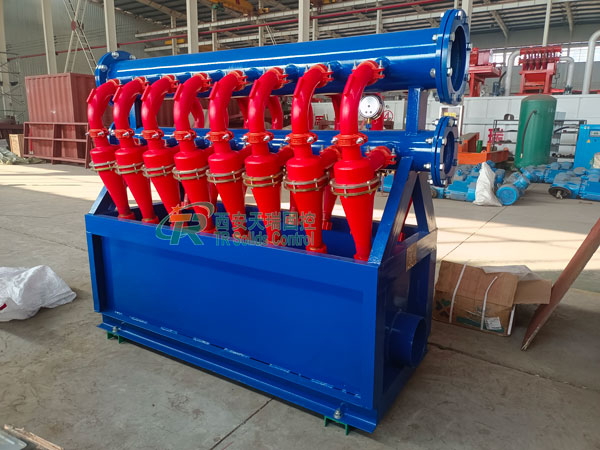

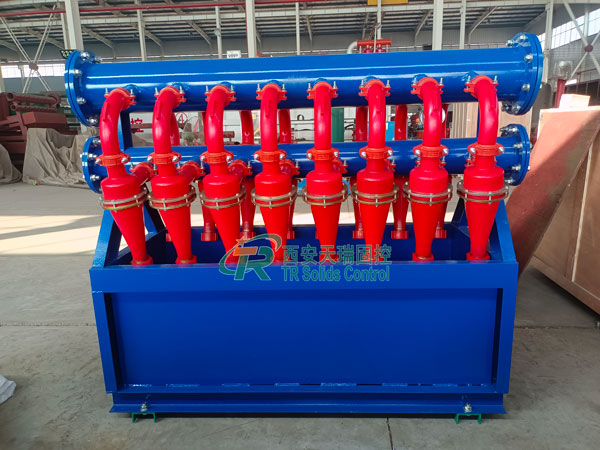

Modern desilters integrate multiple hydrocyclones (e.g., 8–16 units) on a single manifold, paired with a vibrating screen (often linear motion) to catch solids discharged from the underflow. This compact design minimizes footprint and simplifies installation in drilling rigs.

Low Operational Costs:

Unlike centrifuges, desilters do not require complex mechanical parts or high energy consumption. They operate passively via fluid pressure, reducing maintenance and operational expenses.

Compatibility with Weighted Muds:

In weighted drilling fluids (e.g., barite-laden muds), desilters prevent the loss of valuable barite particles (typically <74 μm) while removing drilled solids. This is achieved by adjusting the hydrocyclone’s cut point (particle size at which 50% of solids are separated) through pressure and flow rate control.

3. Technical Specifications and Performance

Particle Size Range:

Effective for solids in the 20–74 μm range, bridging the gap between desanders (coarser) and centrifuges (finer).

Flow Rate and Pressure:

Typical processing capacities range from 50–200 GPM (190–760 L/min) per hydrocyclone, with operating pressures of 15–35 psi (0.1–0.24 MPa). Higher pressures improve separation efficiency but increase energy use.

Screen Integration:

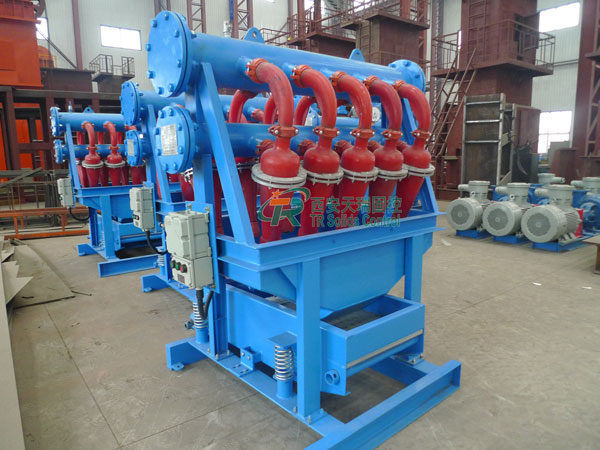

The underflow from hydrocyclones is discharged onto a vibrating screen (e.g., 200–325 mesh) to capture any residual solids, preventing re-entrainment into the mud system. Linear motion screens are preferred for their superior throughput and solids conveyance.

4. Applications in Drilling Operations

Horizontal and Directional Drilling:

In extended-reach wells, fine solids can accumulate and cause high torque/drag. Desilters maintain low solids content, reducing friction and improving ROP (Rate of Penetration).

High-Pressure, High-Temperature (HPHT) Wells:

Fine solids can plug formation pores or damage downhole tools. Desilters ensure mud cleanliness, critical for maintaining wellbore stability in challenging environments.

Environmentally Sensitive Areas:

By minimizing waste volume (compared to centrifuges), desilters reduce disposal costs and environmental impact, aligning with stringent regulations.

Mud desilters play a pivotal role in drilling fluid optimization by efficiently removing fine solids that traditional equipment cannot capture. Their integration with hydrocyclones and vibrating screens ensures cost-effective, high-performance solids control, ultimately enhancing efficiency, reducing downtime, and lowering operational costs. As drilling challenges evolve, desilters will continue to adapt with advanced materials and automation, solidifying their position as indispensable tools in modern drilling operations.
