What solids control equipment are used in oil drilling?

In the field of oil and gas drilling, a Mud Solids Control System is essential for separating solids from drilling fluids, ensuring efficient drilling operations and fluid recycling. Below is an introduction to the primary solids control equipment used in petroleum drilling, along with their English names and functions:

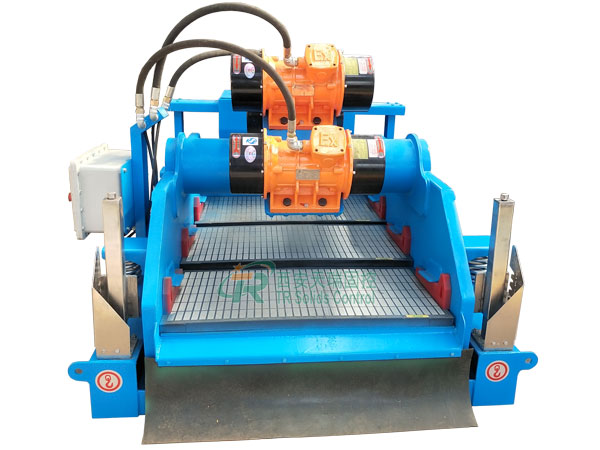

1. Shale Shaker (Vibrating Screen)

• Function: The first stage of solids control, used to separate large drill cuttings (particles above 75-200 microns) from the drilling fluid.

• Key Features: Equipped with vibrating screens of varying mesh sizes (e.g., API 35 to API 120) to optimize separation efficiency.




2. Degasser (Gas Remover)

• Function: Removes entrained gases (such as methane, hydrogen sulfide) from the drilling fluid to prevent safety hazards and maintain fluid properties.

• Types: Vacuum degassers and atmospheric degassers are commonly used.

3. Desander

• Function: The second stage of solids control, designed to remove sand-sized particles (typically 47-76 microns) from the drilling fluid using hydrocyclones.

• Operation: Relies on centrifugal force to separate solids from the liquid phase.

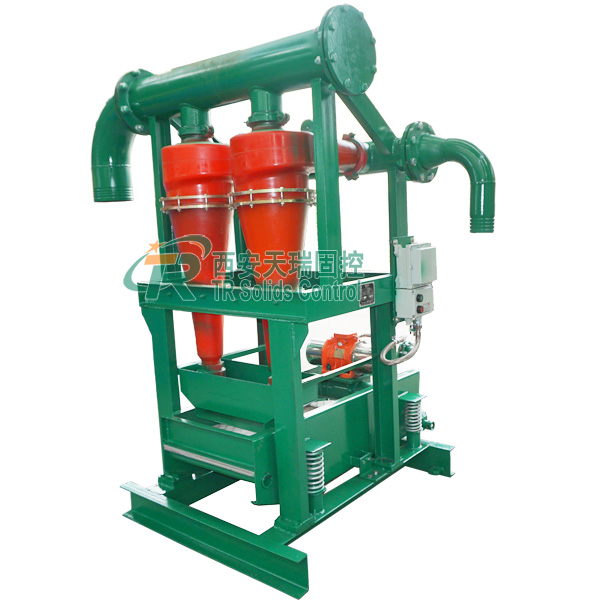

4. Desilter

• Function: The third stage of solids control, used to remove finer particles (15-47 microns) from the drilling fluid, also utilizing hydrocyclones.

• Role: Further refines the drilling fluid after desanding.

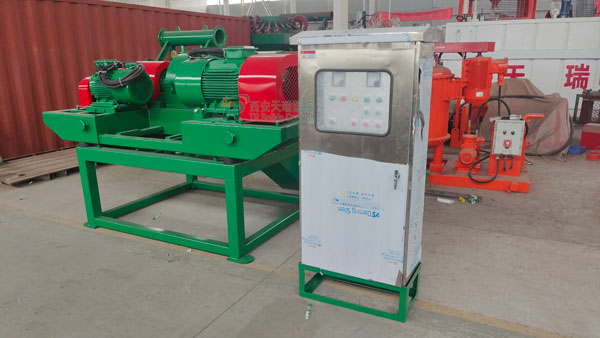

5. Decanter Centrifuge

• Function: The final stage of solids control, capable of separating ultra-fine particles (2-5 microns) from the drilling fluid using high-speed rotation.

• Advantage: Provides the highest level of solids separation, ensuring clean drilling fluid for reuse.




6. Mud Cleaner

• Function: Combines the principles of screening and centrifugal separation to remove fine solids from the drilling fluid.

• Composition: Typically consists of a desilter hydrocyclone mounted above a vibrating screen.

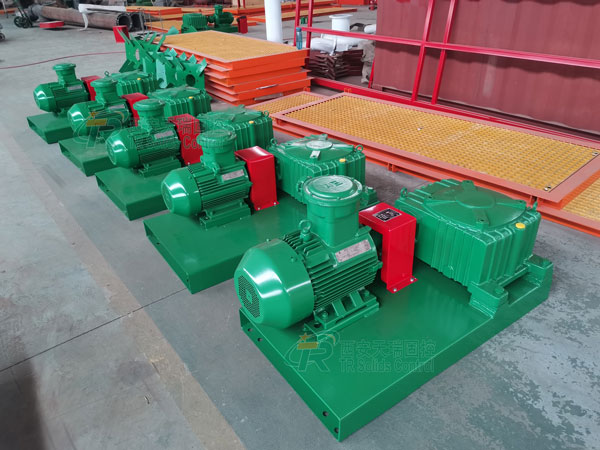

7. Mud Agitator

• Function: Keeps the drilling fluid in a homogeneous state by continuously stirring it, preventing solids from settling at the bottom of the mud tank.

• Importance: Ensures consistent fluid properties and prevents equipment blockage.




8. Mud Tank

• Function: Serves as a storage and processing unit for drilling fluid, housing all solids control equipment.

• Design: Modular tanks with cone-shaped bottoms are often used to facilitate solids removal and fluid circulation.

System Overview

• The solids control system is a comprehensive setup that integrates the above equipment to achieve multi-stage solids separation.

• It is typically installed on drilling rigs and is suitable for drilling operations at depths ranging from 2000 to 7000 meters.

• The system ensures the recycling of drilling fluid, reducing waste and operational costs while maintaining drilling efficiency and safety.
