What are the characteristics of drilling fluid shale shaker

2025-09-05

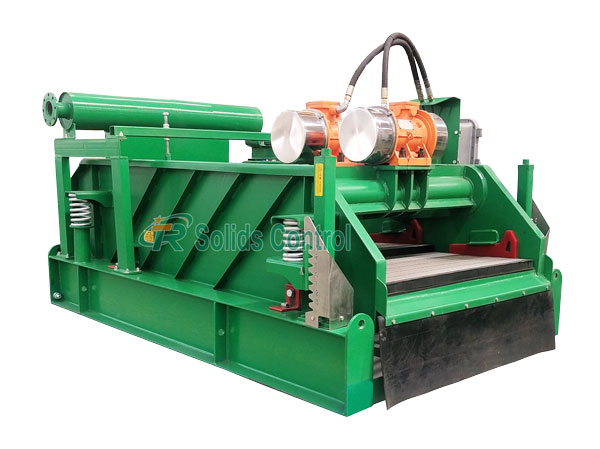

Shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system.

Features and Benefits

1.Alloy sleel material;

2.Martin or OLI vibration motor;

3.Whole heat trealment, heavy anticorrasion coating;

4.Vibration strength 7.5G;

5.Vibration strength is adjustable;

6.Wedge block of shaker screen is foxed;

7.Cofferdam type hopper;

8.Schneider or Siemens electrical components.

Model	TRPS584	TRZS584	TRZS703	TRZS585	TRZS752
Vibration Motion		Linear Motion
Treatment Capacity	140m³/h	130m³/h	120m³/h	150m³/h	60m³/h
Motor Power	1.94+1.0kw	1.5kwx2	1.5kwx2	1.94kw x2	0.75kwx2
Screen Specs	(585x1165mm)x4	(585x1165mm)x4	(700x1250mm)x3	(585x1165mm)x5	(750x900mm)x2
Screen Area	2.7m²	2.7m²	2.6m²	3.4m²	1.4m²
Vibration Strength	≤7.1G(Adjustable)	≤7.1G(Adjustable)	≤7.1G(Adjustable)	≤7.1G(Adjustable)	≤7.1G(Adjustable)
Double Amplitude	7mm	7mm	6mm	6mm	5mm
Adjustment Angle	1° -+5°	1° -+5°	1° -+5°	1° -+5°	+3°
Ex Standard	ExdIIBt4/IECEX / A-TEX
Weight	1618kg	1618kg	1620kg	2000kg	900kg
Dimension	2966x1600x1280mm	2966x1600x1280mm	2770x1785x1690mm	3600x1600x1280mm	1835x1280x1200mm
Remark	Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.
