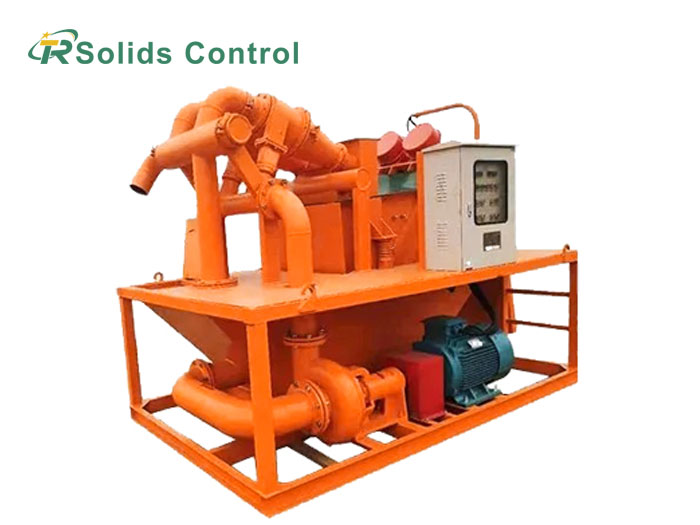

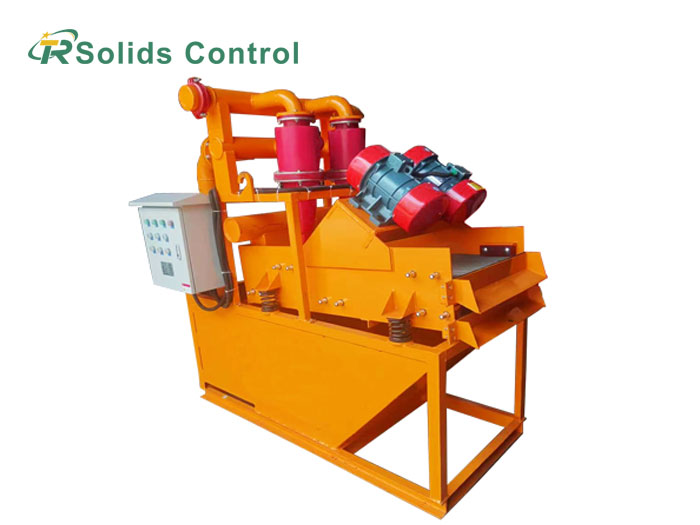

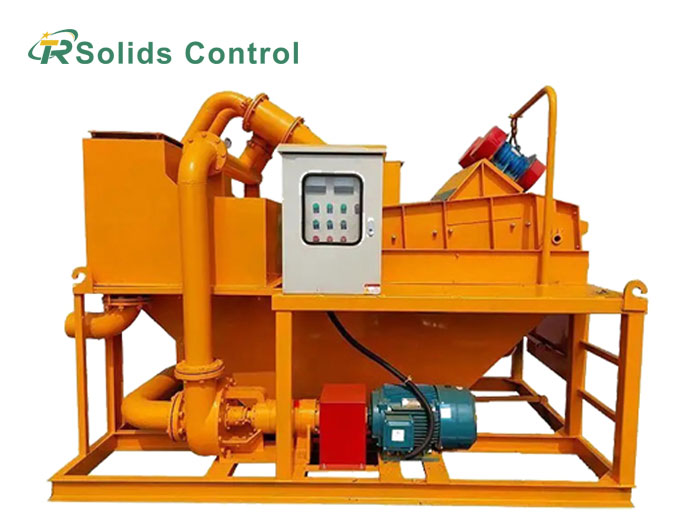

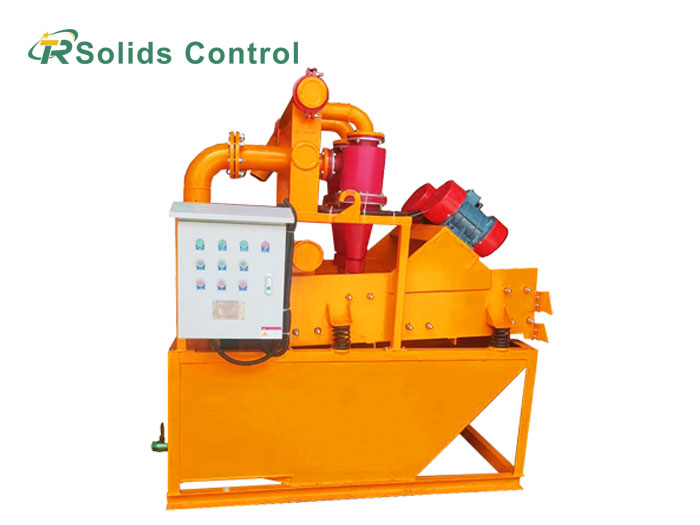

Mud purifier device

The mud purification device is a special equipment for piling mud treatment independently developed by TR Solids Control. It is also called mud desander and piling desander. It rationally combines mud vibration screening and cyclone separation to form a mud treatment circulation purification system.

Product PDF Product Catalogue Inquiry

Decription

The mud purification device is a special equipment for piling mud treatment independently developed by TR Solids Control. It is also called mud desander and piling desander. It is an environmentally friendly high-tech product that rationally combines two different mud purification methods, mud vibration screening and cyclone separation, to form a circulating purification system for mud treatment.

It is suitable for the purification of mud in pile foundation projects, anti-seepage wall projects, slurry balance shield and jacking pipe construction using mud wall protection and circulation drilling technology in modern foundation construction. The use of this equipment is beneficial to controlling mud indicators, improving hole making quality and hole making efficiency, shortening hole cleaning time, purifying and recycling mud, reducing construction costs, reducing drill sticking accidents, and reducing environmental pollution. It is one of the necessary equipment for civilized foundation construction.

Advantages of Mud Purifier

The combined double-deck vibrating screen and cyclone design offers a compact structure and a small footprint.
It has a strong processing capacity, quickly removing particles ranging from 15μm to 44μm from mud, enabling mud recycling and reducing operating costs.
The screen and cyclone utilize new wear-resistant materials for extended service life.
The mud treated by the equipment's mud recovery system can be recycled, significantly reducing environmental pollution.

Mud purifier parameters

Model	TRZX-50/20	TRZX-100/30	TRZX-150/50
Liquid handling capacity（m³/h）	≤50	≤100	≤150
Slag processing capacity（T/h）	≤20	≤30	≤50
separation point（μm）	20	30	45
Maximum moisture content of undersize	30%	30%	30%
Sand content of slurry after purification	＜2%	＜2%	＜2%
Total power（kw）	20.7	20.7	20.7
Dimensions（m）	2.2×1.65×2.35	2.5×1.7×2.35	2.5×1.7×2.35
Weight（kg）	2100	2300	2500

Model	TRZX-200/80	TRZX-250/90	TRZX-500/200
Liquid handling capacity（m³/h）	≤200	≤250	≤500
Slag processing capacity（T/h）	≤80	≤90	≤50
separation point（μm）	60	60	60
Maximum moisture content of undersize	30%	30%	30%
Sand content of slurry after purification	＜2%	＜2%	＜2%
Total power（kw）	48.6	58.6	117.2
Dimensions（m）	3.5×1.9×2.45	3.5×2×2.45	3.5×2×2.45
Weight（kg）	3300	3600	7800

TR Petroleum manufactures mud desanders, and our mud purification systems are certified by API and ISO9001. We welcome customers to visit Xi'an Tianrui Solids Control for guidance and to discuss mud desander business. We will provide after-sales service for both our mud desanders and mud purification systems. If you're looking for a qualified supplier of mud desanders, Xi'an Tianrui Solids Control is your ideal choice.

In addition to producing mud purification units and mud desander units, Tianrui Petroleum also produces various mud cleaning systems, including oil and gas drilling mud recovery systems, HDD horizontal directional drilling mud recovery systems, subway shield mud recovery systems, river desilting mud recovery systems, etc.
