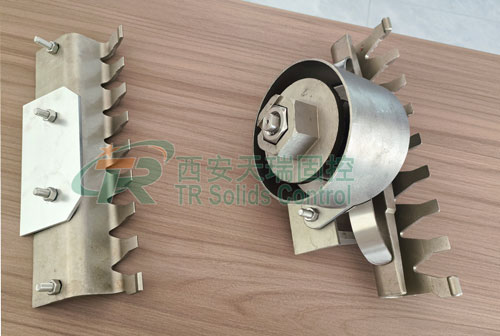

14626-00 Tensioning Assy

The 14626-00 Tensioning Assy is a critical component of Derriok's FLC500 series shale shakers, designed to secure screen panels quickly and efficiently using Derriok's patented Quick-Lok single-side tensioning system. This assembly enables operators to replace screen panels in under one minute per panel, significantly reducing downtime and maintenance efforts in oilfield solids control operations .

Primary Functions:

1. Fast Screen Panel Securement: Allows screen panels to be tensioned with just a 1/2-turn of the bolts, eliminating the need for traditional wedge systems

2. Single-Side Operation: Enables screen replacement and tensioning from one side of the shaker, improving ergonomics and reducing required workspace

3. Optimal Tension Distribution: Maintains uniform tension across the screen panel, extending screen life and enhancing separation efficiency

4. Vibration Resistance: Secures screens firmly in place during high-G operation, preventing panel movement that could cause damage

Advantages

1. Reduced Downtime: Screen changes completed in under one minute per panel vs. traditional methods that take 5-10 minutes

2. Improved Safety: Single-side access reduces risk of injury during screen replacement

3. Extended Screen Life: Uniform tensioning prevents premature wear and damage from vibration

4. Enhanced Efficiency: Quick screen changes allow for faster response to changing drilling conditions

5. Cost Savings: Minimizes labor costs associated with maintenance and extends screen panel service life

The 14626-00 Tensioning Assy is a cornerstone component of Derriok's FLC500 series shale shakers. This assembly allows operators to quickly change screens, significantly improving production efficiency while reducing downtime and maintenance costs.

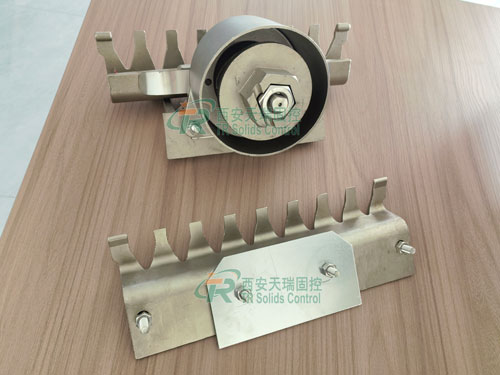

14623-00  Tensioning assy, underside 500 series

material:17-4 PH heat treatment

hardness:38 HRC

feature:oil and rust resistance

weight per set:9kg

Xi'an TR Solids Control adopts advanced technology and mechanized production methods to produce Tianrui brand accessories to replace Derriok shale shaker and all-in-one machines. The shale shaker and all-in-one machine accessories produced by TR Solids Control meet the US API standards and have API certificates.
