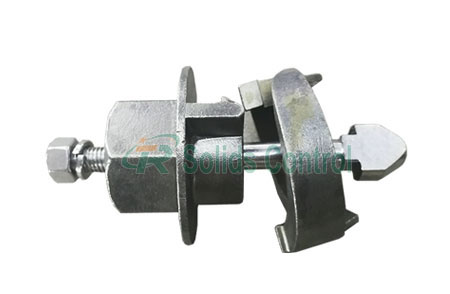

9744-00 Ramp-lock Assy

The 9744-00 Ramp-lock Assy is a specialized screen tensioning system for Derrick FLC2000 shale shakers, designed to provide fast, reliable screen panel installation and securement.

This clamping mechanism is easy to operate and replaces the traditional screen clamping method, significantly reducing downtime when changing screens during oilfield solids control operations.

How It Works

The 9744-00 Ramp-lock Assy employs a unique ramp-and-finger design that allows operators to:

Position screen panels in the shaker frame

1. Engage the tensioning bolts with a simple downward motion

2. Rotate the bolts 1/4 to 1/2 turn to achieve full tension

3. The ramp mechanism converts rotational motion to linear clamping force, securing the screen panel firmly in place

Advantages Over Traditional Systems

1. Single-side operation: Eliminates need to access both sides of the shaker frame

2. Tool-free installation: Reduces screen change time to under 1 minute per panel

3. Consistent tension: Maintains uniform pressure across screen edges

4. Vibration resistance: Keeps screens securely fastened during high-G operation (up to 7.3 Gs)

Benefits

1. Reduced Downtime: Dramatically speeds up screen replacement (vs. traditional wedge systems)

2. Enhanced Safety: Single-side access minimizes risk of injury during maintenance

3. Extended Screen Life: Uniform tensioning prevents premature wear from uneven loading

4. Cost Efficiency: Decreases labor costs and extends screen service intervals

The 9744-00 Ramp-lock Assy is a critical component for maintaining peak performance of Derrick FLC2000 shale shakers. By providing a fast, reliable screen tensioning solution, it enables oilfield operations to minimize downtime and maximize solids control efficiency.

Xi'an TR Solids Control adopts advanced technology and mechanized production methods to produce Tianrui brand accessories to replace Derriok shale shaker and all-in-one machines. The shale shaker and all-in-one machine accessories produced by TR Solids Control meet the US API standards and have API certificates.
