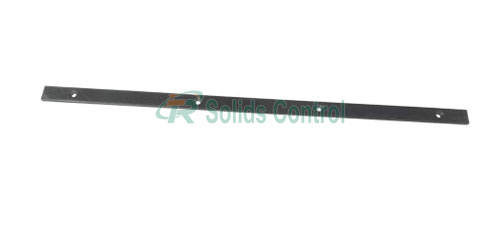

Derriok Side Support/Cross Support

Derriok Side Support (P/N: 6417-01) and Cross Support are critical structural components for Derriok shale shakers, providing essential support and stability to screen panels during high-vibration operations in oilfield environments.

Design & Function

1. Positioning: Mounted along the lateral edges of the screen frame

2. Primary Function: Provides lateral stability to screen panels, preventing side-to-side movement during vibration

3. Secondary Role: Acts as a cushion between screen panels and shaker frame, reducing wear and noise

4. Installation: Typically installed in pairs (left and right) on each screen panel

Side Support Installation

1. Clean the mounting surface on the shaker frame

2. Align the side support with the pre-drilled holes on the screen frame edge

3. Secure with provided hardware (bolts/nuts)

4. Ensure the support sits flush against the frame

Cross Support Installation

1. Position the cross support across the screen frame at the specified location

2. Align with mounting holes (either in the frame or on dedicated brackets)

3. Secure firmly to prevent movement during operation

4. Verify proper tensioning

Advantages of support

1. Precision Engineering: Exact fit for Derriok equipment, ensuring proper function

2. Superior Materials: Engineered to withstand harsh oilfield conditions

3. Warranty Compliance: Maintains equipment warranty coverage

Derriok Side Support (6417-01) and Cross Support (6417-06) are essential components that ensure the structural integrity and optimal performance of shale shakers. By providing critical support and vibration control to screen panels, they significantly extend screen life while improving separation efficiency.

6417-01 side support 2000 shaker part

side support 2000 shaker part  1x27 7/8" (708mm) ; Width: 1" (26mm)

material : Fiber glass;

Unit weight:0.2kg

6417-06 cross  support 2000 shaker part

cross support 2000 shaker part  1x40" (1016mm) ; Width: 1" (26mm)

material : Fiber glass

unit weight:0.55kg

Xi'an TR Solids Control adopts advanced technology and mechanized production methods to produce Tianrui brand accessories to replace Derriok shale shaker and all-in-one machines. The shale shaker and all-in-one machine accessories produced by TR Solids Control meet the US API standards and have API certificates.
