Features and models of Mud cleaners

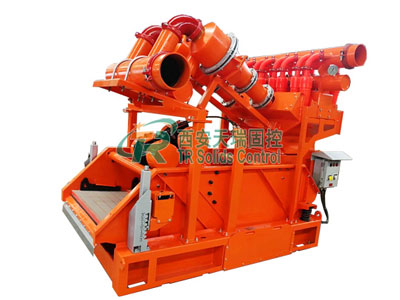

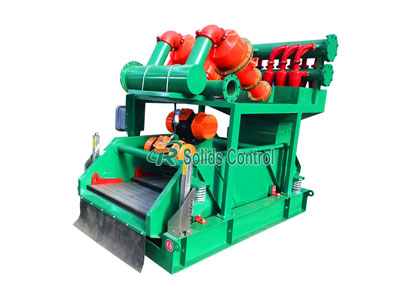

TR mud cleaner is a versatile device that is used to separate big solid components and other slurry materials from drilled mud.

Mud Cleaner equipment is a combination of desander, desilter hydro cyclone with an underflow shale shaker. To overcome limitations that are present in many solid removal equipment, ‘new’ equipment was developed with the purpose of removing drilled solids from weighted muds. The Mud Cleaner does remove most of the drilled solids while also retaining the barite as well as the liquid phase present in the mud. The discarded solids are sieved to discard larger solids, and returned solids are smaller even from the screen size of the liquid phase.

Features and Benefits

1. It can remove sand and mud and vibrate the screen in one, with compact structure and small size.

2. The cyclone is made of high chromium cast iron lined with polyurethane or integral polyurethane material, which has a long service life.

3. The screen box is made of high manganese alloy steel, which has high strength and extends the life of the screen box.

4. Choose international brand vibration motor, Martin motor or OLI motor.

5. The screen box is heat treated as a whole and the surface is heavily coated with anti-corrosion coating to ensure a long service life of the vibrating screen.

6. High G-force excitation intensity (adjustable) can meet the needs of separating high-viscosity and high-density mud.

7. The screen can be fixed by plate tensioning or wedge block.

8. Electrical components are international brands such as Schneider or Siemens.

Mud cleaners are widely used and are often used in construction processes such as oil and gas extraction, mining, tunneling, urban shield and piling.Mud cleaners are an integral part of the solids control system, and their basic concept involves purifying the mud produced during the drilling process to remove solid particles from it, thus ensuring mud performance and drilling efficiency.
