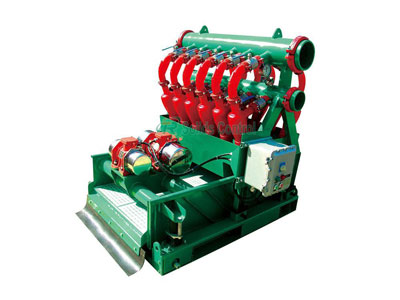

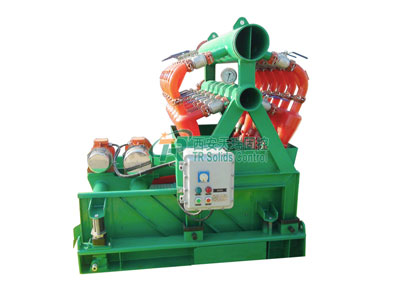

Working characteristics of TR desilter

The TR desilter utilizes advanced hydrocyclone technology to efficiently separate tiny solid particles from drilling fluid. Its separation range is typically between 15 and 44 microns, enabling it to remove even finer impurities and improve the cleanliness of the drilling fluid.

Features and Benefits

1.Pure polyurethane or high-chromium iron for cyclone .

2.Clamp connection for the installation of cyclone,easy to dismantle and replace.

3.Ball valve is installed at the inlet and outlet of cyclones,it is available to choose the cyclone number independently.

4.Adopted international brand vibration motor,Martin or OLI motor.

5.Mechanical type screen box is synchronous with lifting device.

6.We can install Derrick hydrocyclones.

TR desilter is a device used for solid-liquid separation, primarily for removing larger solid impurities from liquids. It's not only used in oil drilling solids control, but also in over ten other fields, including trenchless drilling mud purification, geological exploration cuttings disposal, mine tailings wastewater treatment, construction engineering mud dehydration, impurity removal in the food industry, pharmaceutical drug purification, and water treatment wastewater purification.
