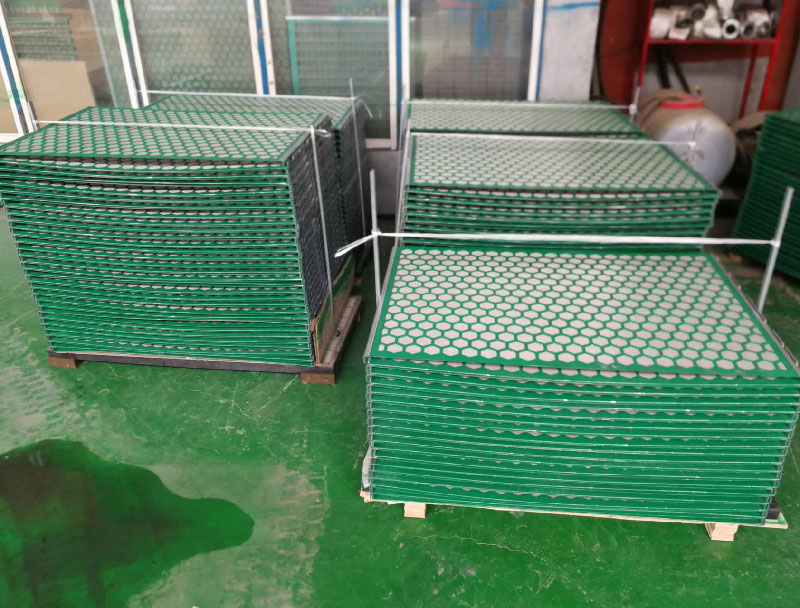

Shale Shaker Screens for Oil Field and Coal Projects

Shale shaker screen is mainly used in oil drilling mud process, coal mine and various ore dressing and other industrial sifting screening. The screen panels can be designed with multi-layer or single layer flat panels, with or without backing plate support.

Shale shaker screen is used to remove cuttings from drilling mud by using vibration and mesh filtration, allowing clean mud to be reused in oil field drilling operations.

Shale Shaker Screens for Oil Field and Coal Projects: Key Insights and Applications

1. Core Functionality

Shale shaker screens are vibrating sieves designed to separate solids (e.g., drill cuttings, coal impurities, mineral gangue) from liquids (e.g., drilling mud, water) in oil field and coal projects. Their primary role is to:

• Maintain drilling fluid quality in oil and gas operations by removing unwanted solids, ensuring efficient circulation and borehole stability.

• Improve coal purity by eliminating rocks, dirt, and other debris before processing, enhancing market value.

• Optimize mineral extraction in mining by separating ore from waste rock, boosting recovery rates (e.g., gold mining).

2. Types of Shale Shaker Screens

Screens are categorized by material and structure, each tailored to specific industry demands:

A. Material-Based Types

1. Composite Screens

• Composition: Stainless steel wire mesh + plastic flat screen + galvanized sheet.

• Advantages: Long lifespan, high liquid conductivity, easy disassembly, and cost-effective.

• Applications: Oilfield drilling mud shakers, desanders, and desilters.

2. Polyurethane Screens

• Features: High abrasion resistance, durability, and flexibility.

• Applications: Coal plants, magnetite recovery, dewatering, and mining operations requiring frequent screen replacements.

3. Steel Frame Screens

• Structure: Robust steel frame with woven mesh.

• Advantages: High tensile strength, suitable for high-pressure drilling environments.

• Applications: Oil and gas drilling, especially in harsh conditions.

4. Stainless Steel Screens

• Material: Corrosion-resistant stainless steel (e.g., 304/316/316L).

• Advantages: Longevity in water-based or chemically aggressive fluids.

• Applications:, chemical processing, and food/beverage industries (e.g., grain screening).

B. Structural Variants

• Hook Strip Screens: Easy installation and replacement, commonly used in oilfield shakers.

• Frame Flat Screens: Provide stable screening surfaces for high-volume applications.

• Pyramid Screens: Designed for rapid processing of large mud volumes, delivering drier cuttings (e.g., Derrick FLC500 series).

3. Key Specifications

• Mesh Size: Ranges from API 20 (coarse) to API 450 (fine), determining the smallest particle size separated.

• Oil Field: Finer meshes (API 100–325) for precise solids control.

• Coal Projects: Coarser meshes (API 20–100) for bulk impurity removal.

• Dimensions: Common sizes include 585×1165 mm (Mongoose series) and 695×1050 mm (Derrick FLC500).

• Layers: 2–3 layers for enhanced filtration efficiency.

• Weight: Composite frames (e.g., 12 kg for 1165×585 mm screens) vs. heavier steel variants.

4. Industry-Specific Applications

A. Oil and Gas Drilling

• Role: First-phase solids control in drilling rigs, preventing fluid degradation and equipment wear.

• Example: SWACO Mongoose screens with composite frames are widely used for their balance of durability and cost.

B. Coal Mining

• Role: Pre-processing screening to remove impurities, improving coal combustion efficiency and reducing emissions.

• Example: Polyurethane screens excel in coal plants due to their resistance to moisture and abrasion.

C. Mineral Processing

• Role: Separating valuable minerals (e.g., gold, copper) from gangue based on particle size and density.

• Example: Pyramid screens enhance throughput in high-volume mining operations.

D. Food and Beverage

• Role: Screening grains, fruits, and vegetables to remove debris during flour production or juice processing.

• Example: Stainless steel screens ensure hygiene and compliance with food safety standards.

5. Selection Criteria

• Fluid Type: Water-based muds favor stainless steel screens; oil-based muds may require polyurethane or composite screens.

• Particle Size Distribution: Finer meshes for clay-rich formations; coarser meshes for sandy or gravelly cuttings.

• Throughput Requirements: High-volume operations (e.g., offshore drilling) need pyramid or multi-layer screens.

• Environmental Conditions: Corrosive environments (e.g., offshore platforms) demand stainless steel or coated screens.

6. Maintenance and Cost Considerations

• Lifespan: Polyurethane screens last longer in abrasive environments (e.g., coal mining), while composite screens offer the best cost-performance balance in oilfields.

• Replacement Frequency: Hook strip screens simplify maintenance, reducing downtime.

• Total Cost of Ownership: High-quality screens (e.g., API-compliant models) may have higher upfront costs but lower long-term expenses due to reduced failures.

7. Market Trends

• Advanced Materials: Nanocoatings and hybrid materials (e.g., steel-polyurethane composites) are emerging to extend screen life.

• Smart Screens: Integration of sensors to monitor wear and predict replacements, optimizing operational efficiency.

• Sustainability: Recyclable materials and reduced energy consumption in manufacturing align with global environmental goals.
