How to Select Shale Shaker for High-Temperature Mud？

High-temperature slurry shale shakers primarily focus on "high-temperature resistance"—addressing the damage high temperatures can cause to equipment materials, core components, and lubrication seals, while also ensuring that screening efficiency and throughput are unaffected by the high-temperature environment (high temperatures can lead to changes in slurry viscosity and alterations in the properties of solid particles). Selecting a shale shaker suitable for high-temperature slurry requires a comprehensive evaluation from three aspects: material temperature resistance, structural design rationality, and operating condition compatibility.

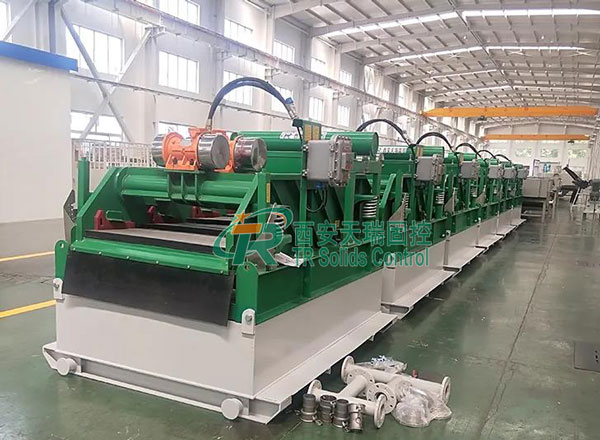

What is shale shaker for high-temperature mud?

1. Scope of high-temperature mud

Temperature threshold: usually refers to drilling fluid above 120℃ (in deep/ultra-deep well drilling, geothermal drilling, and high-temperature formation drilling, mud temperature can reach 150~250℃);

Accompanying characteristics: High temperature may lead to a decrease in mud viscosity (but in deep wells, it may still maintain high viscosity due to pressure superposition), increased corrosivity (high temperature accelerates the decomposition of chemical agents, and the pH value of mud fluctuates), and solid particles are prone to scaling/adhesion.

2. The Challenges of High Temperatures to shale shakers

Material aging: Ordinary steel and rubber parts are prone to deformation and cracking;

Component failures: motor overheating and burning out, bearing lubrication failure, and seal leakage;

Shaker Screen damage: Ordinary screens soften, tension loosens, and screening accuracy decreases;

Vibration trajectory deviation: Thermal deformation of the screen box leads to an imbalance of excitation force.

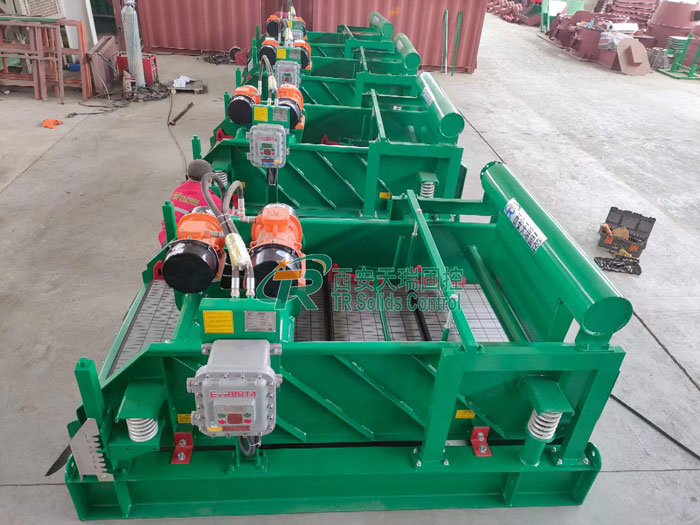

Selection criteria for high-temperature slurry shale shakers:

I. Material Temperature Resistance

High-temperature mud places extremely high demands on the materials used in shale shakers, requiring that key components such as screen mesh and screen box not deform, soften, or undergo chemical corrosion under high-temperature conditions.

1. Shaker Screen material

   Stainless steel screens: 304 and 316 are recommended. They have excellent resistance to high temperature oxidation (304 stainless steel, 310S can reach 1150℃), and are resistant to acid, alkali and rust, making them suitable for corrosive high temperature slurries.

   Polyurethane screens: Although they have excellent wear resistance (lifespan is 8-10 times that of ordinary metal screens), their temperature resistance is usually limited to around 150℃, and they are only suitable for low-temperature or medium-temperature slurries.

   High manganese steel screen: its wear resistance is improved through surface hardening, but its temperature resistance is generally poor, and it is prone to carbide precipitation and brittleness at high temperatures, so it is not recommended for high-temperature applications.

   Ceramic screens: They have extremely high temperature resistance (can withstand temperatures above 1000℃), but they are expensive and brittle, and are only suitable for special high-temperature working conditions.

2. Screen box and support material

   The screen box should be welded with high-strength steel plates to ensure structural stability at high temperatures; the support frame is recommended to be made of high-temperature resistant alloy steel to avoid deformation or breakage due to thermal expansion.

II. Structural Design: Heat Dissipation and Deformation Resistance

High-temperature environments can accelerate equipment thermal fatigue, so it is necessary to optimize heat dissipation and reduce thermal stress concentration through structural design.

1. Screen box structure

   The screen box is designed with thickened high-temperature resistant steel to increase heat capacity and slow down the rate of temperature rise.

   The screen box is reinforced with ribs to reduce trajectory deviation caused by thermal expansion; the surface is treated with high-temperature rust prevention.

   Avoid right angles or sharp edges to reduce stress concentration points and prevent cracking at high temperatures.

2. Vibration damping springs and connecting parts

   High-temperature resistant rubber or metal springs should be selected for vibration damping springs to avoid softening at high temperatures, which could lead to vibration failure.

   The connectors must be made of high-temperature resistant materials to prevent loosening or breakage.

3. Shaker Screen installation method

   Screen tensioning method: adopts double tensioning of "wedge block + bolt" (not easy to loosen at high temperature), avoiding the snap-on type (easy to deform and fail);

   Screen layers: Double or triple layer structure to enhance tensile strength at high temperatures;

   Anti-clogging design: The screen surface can be coated with an anti-stick coating (such as PTFE coating) to reduce the adhesion of high-temperature mud.

III. Adaptability to Operating Conditions

Processing capacity matching: Based on the actual discharge volume of high-temperature mud (the discharge volume variation at high temperatures needs to be considered), select equipment with a processing capacity 10-20% larger than the rated discharge volume (the equipment efficiency may decrease at high temperatures).

Solid phase characteristics: High solid content (≥10%): Select models with larger screen area (such as 3-layer screen, double screen box structure) to enhance screening efficiency;

For particles prone to scaling: prioritize linear elliptical shale shakers, which offer high throughput, prevent clogging, and ensure smooth conveying of rock cuttings;

Mud corrosivity: Mud corrosivity increases at high temperatures (e.g., containing brine or acidic additives), so all stainless steel contact parts (316L material) should be selected to avoid rust.

IV. Core Components of Shale Shaker

1. Vibration motor：

   Insulation class: Must be F class (temperature resistance 155℃) or H class (temperature resistance 180℃) high temperature insulated motor (ordinary motors are B class, temperature resistance 130℃);

   Protection rating: IP65 and above (dustproof and waterproof, suitable for high-temperature dust and mud splashes at drilling sites);

   Heat dissipation design: The motor housing is equipped with reinforced heat sinks, or a forced air cooling system is configured;

   Installation requirements: Symmetrical inclined installation (elliptical shale shaker) to reduce uneven motor load under high temperature.

2. Bearing：

   Material: Select high-temperature alloy bearings or ceramic bearings (temperature resistance ≥200℃, ordinary bearing temperature resistance ≤120℃);

   Lubrication: Use with high-temperature synthetic grease (temperature resistance ≥150℃) to prevent grease loss and carbonization at high temperatures;

   Protection: The bearing end cover is equipped with a dustproof seal (labyrinth type + fluororubber seal ring) to prevent mud and dust from entering.

3. Seals：

   Material: All materials are made of fluororubber (FKM) or perfluororubber (FFKM) (temperature resistance ≥180℃), replacing ordinary nitrile rubber (temperature resistance ≤100℃).

   Locations: The connection between the screen box and the base, the motor shaft end, and the feed inlet flange require a double-sealing design to prevent leakage of high-temperature slurry.

To address the issues of material aging, component failure, and reduced screening efficiency caused by high temperatures, high-temperature mud shale shakers require product selection based on actual operating conditions (temperature, mud characteristics, and throughput), and compatibility should be verified through manufacturer case studies and test reports. The ultimate goal is to achieve long-term stable operation of the equipment in high-temperature environments while ensuring drilling fluid treatment efficiency and reducing maintenance costs.
